Product Description:

The NCV75215 ASSP is designed to work with piezoelectric ultrasonic transducers to provide time-of-flight measurements of obstacle distances during vehicle parking. High sensitivity, low noise operation allows standard 75 mm rod inspection from 0.25 m to 4.5 m. The device drives an ultrasonic transducer at a programmable frequency through a transformer. The received echo is amplified and converted into a digital signal, filtered, detected, and the amplitude is compared to a time-dependent threshold stored in internal RAM. Two-way I/O lines are used to communicate with the host computer (ECU). The master device issues an I/O line command to the NCV75215, and data is returned via the same line.

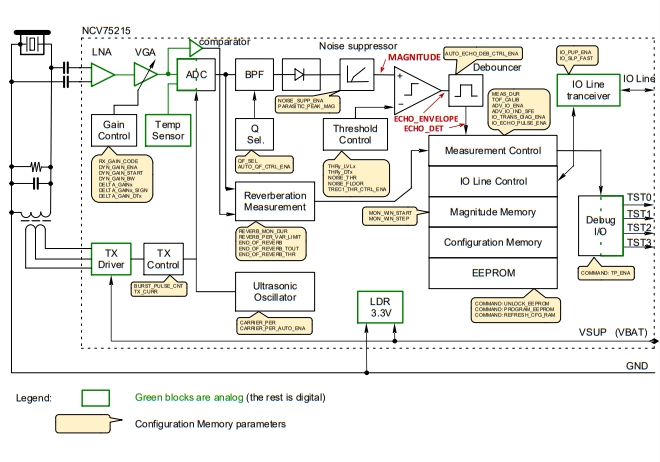

NCV75215DB001R2G block diagram:

Features:

• Measuring distance range from 0.25m to 4.5m (depending on external parts)

• Noise monitoring

• Sensor resonance period measurement

• Sensor performance diagnosis

• Junction temperature monitoring and thermal shutdown

• Sensor center frequency range is 35 to 90 kHz

• Direct and indirect measurement modes

EEPROM memory for configuration Settings and user data

•Rx gain can be adjusted in 0.5 dB step from 50 to 110dB

• Time-dependent thresholds for sensitivity control

• Dynamic (time dependent) gain control

• The Tx current range can be adjusted between 50 mA and 350 mA

• Programmable ultrasonic pulse length

• On-chip bi-directional I/O lines

• Small TSSOP16 package

The NCV prefix is suitable for automotive and other applications that require unique field and control change requirements for AEC−Q100 certification and PPAP capabilities *

• These are lead-free devices

Typical application

• Car parking assistance system

• Ultrasonic distance measurement
