BGSC2341ML10 (Infineon) RF IC digital tuning capacitor, SPDT general 400MHz to 3.8GHz

BGSC2341ML10 (Infineon) RF IC digital tuning capacitor, SPDT general 400MHz to 3.8GHz

Source:本站Time:2023-10-28Views:

Shenzhen Mingjiada Electronics Co., Ltd. recyles and supplies BGSC2341ML10 (Infineon) RF IC digital tuning capacitor, SPDT general 400MHz to 3.8GHz.Product Description:BGSC2341ML10 is a versatile integrated circuit (IC) ideal for RF tuning application…

Shenzhen Mingjiada Electronics Co., Ltd. recyles and supplies BGSC2341ML10 (Infineon) RF IC digital tuning capacitor, SPDT general 400MHz to 3.8GHz.


Product Description:

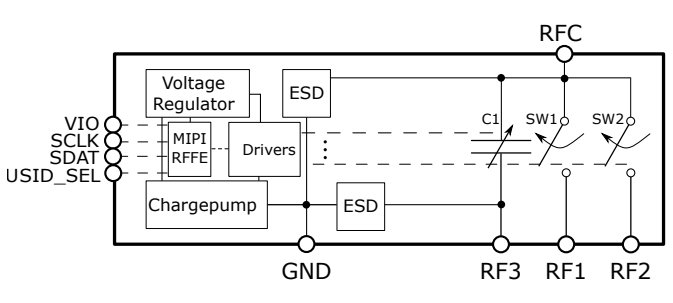

BGSC2341ML10 is a versatile integrated circuit (IC) ideal for RF tuning applications such as tunable impedance matching, antenna tuning, and tunable filtering. The IC integrates an 8-state tunable capacitor and an extremely low Ron single-pole double-throw (SPDT) RF switching function, both controlled by an on-chip MIPI2.1 RFFE digital interface. Last but not least, the BGSC2341ML10 exhibits very good linearity at high RF power conditions and RF voltages up to 40 V, a key attribute in applications such as antenna tuning. It does not require any additional high voltage power supply controller ics and can be powered by a single 1.8V power supply at extremely low current consumption levels. With a 1.1mm X 1.5mm package size, it is a compact solution that is ideal for any small mobile application.


Features:

• Designed for high linearity applications

• The ultra-low on-resistance of each SPDT throw-in is 0.87Ω in the open state

• Can handle high operating RF voltages of 40 V

•0.25-2.00 PF tuning range (1.8 GHz)

• Operating frequency: 0.4-3.8GHz

• High ESD stability

• Control interface according to MIPI 2.1 RFFE standard

•2 default USids that can be selected via the USID_SEL pin

• Supply voltage range: 1.65 to 1.95V

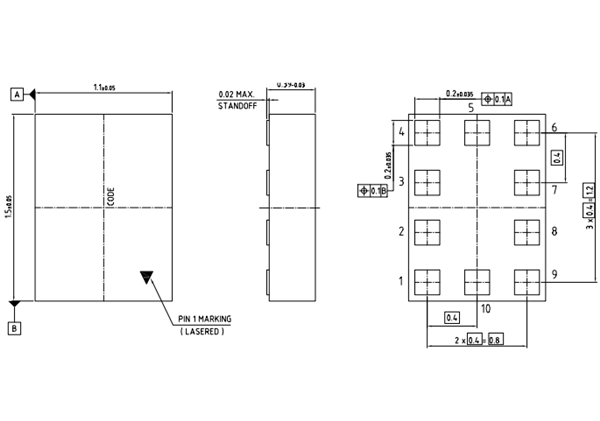

• Small size 1.1mm X 1.5mm (MSL1, 260C, according to JEDEC J-STD-020)

• RoHS and WEEE compliant packaging



Target application:

• Impedance tuning

• Antenna tuning

• Inductance tuning


If interested, please contact Mr. Chen:

Email: sales@hkmjd.com

Company website: www.hkmjd.com
