Sell Infineon Power Management IC BTS5090-1EJA Automotive Smart High Side Switch

Sell Infineon Power Management IC BTS5090-1EJA Automotive Smart High Side Switch

Source:our siteTime:2023-10-28Views:

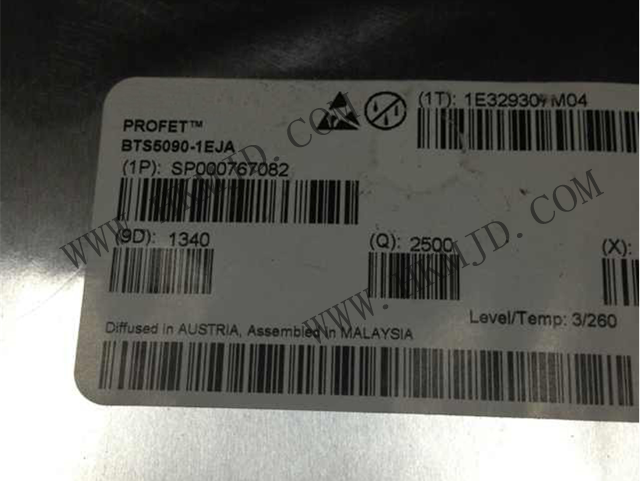

Shenzhen Mingjiaoda Electronics Co., Ltd. new and original sale Infineon power management IC BTS5090-1EJA Automotive smart high side switch including single channel protected high side power switch in PG-DSO-8 exposed pad package.Model No: BTS5090-1EJ…

Shenzhen Mingjiaoda Electronics Co., Ltd. new and original sale Infineon power management IC BTS5090-1EJA Automotive smart high side switch including single channel protected high side power switch in PG-DSO-8 exposed pad package.


Model No: BTS5090-1EJA

Year: 14+

Package: SOP8


Description

The Infineon PROFET +12V automotive smart high-side switches are compliant with standards for automotive applications such as lighting, body control module (BCM) and heating. The protected high-side switches drive resistive, inductive and capacitive loads.The PROFET+ 12V offers a variety of intelligent features to support the replacement of electromechanical relays, fuses and discrete circuits, or for industrial applications.


Product Attributes

Switch Type: General Purpose

Number of Outputs: 1

Ratio - Input:Output: 1:1

Output Configuration: High End

Output Type: N-Channel

Interface: On/Off

Voltage - Load: 5V ~ 28V

Voltage - Supply (Vcc/Vdd): Not Required

Current - Output (Max): 3A

On Resistance (Typ): 90 mOhm

Fault Protection: Current Limit (Fixed), Open Load Detection, Over Temperature, Over Voltage

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

Supplier Device Package: PG-DSO-8-43-EP

Package/Shell: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
