(Supplied, recycled) MMPF0100NPAZESR2 (NXP/ NXP) 14-channel configurable Power Management Integrated Circuit (PMIC).

Product Description:

The PF0100 SmartMOS Power Management Integrated Circuit (PMIC) offers a highly programmable/configurable architecture with fully integrated power devices and minimal external components. The PF0100 features up to six buck converters, six linear regulators, RTC power supplies, and button battery chargers to power complete systems in a wide range of applications, including application processors, memory, and system peripherals. The PF0100 features on-chip one-time programmable (OTP) memory and is available in pre-programmed standard or non-programmed versions to support custom programming. The PF0100 is defined to support the entire embedded MCU platform solution, such as I.MX 6-based e-readers, IPTV, medical monitoring and home/factory automation.

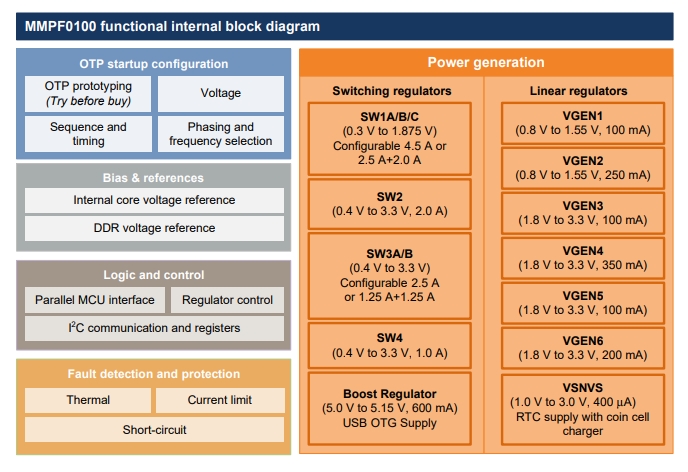

MMPF0100NPAZESR2 Functional block diagram:

Features:

•4 to 6 buck converters, depending on configuration

• Single phase/dual phase/parallel options

•DDR terminal tracking mode options

• Boost regulator to 5.0V output

•6 general purpose linear regulators

• Programmable output voltage, sequence and timing

• OTP (one-time programmable) memory for device configuration

• Button battery charger and RTC power supply

•DDR terminates the reference voltage

• Power control logic with processor interface and event detection

•I2C control

• Individually programmable on, off and standby modes

Application

• Tablets

• IPTV

• E-reader

• Set-top box

• Industrial control

• Medical monitoring

• Home Automation/alarm/Energy management
