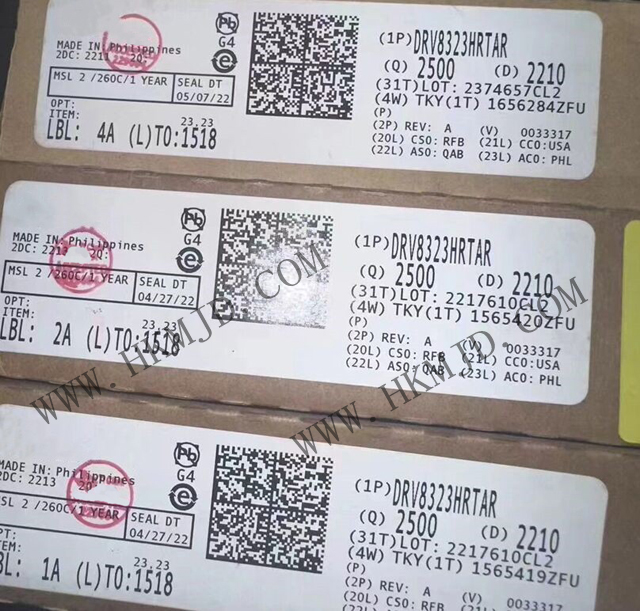

Mingjiada Electronics Co., Ltd. sells brand new and original TI Motor Driver DRV8323HRTAR Maximum 65V 3-phase Smart Gate Driver with Current Shunt Amplifier, Quality Assurance, Welcome to call!

Device Overview

The DRV8323HRTAR devices are integrated gate drivers for three-phase applications. These devices feature three half-bridge gate drivers, each capable of driving both high-side and low-side N-channel power MOSFETs.The DRV832x uses an integrated charge pump to generate the appropriate gate drive voltage for high-side MOSFETs and a linear regulator to generate the appropriate gate drive voltage for low-side MOSFETs. This smart gate drive architecture supports up to 1A peak gate drive pull current and 2A peak gate drive sink current.

Features

- Three half-bridge gate drivers

- Drives three high-side and three low-side N-channel MOSFETs (NMOS)

- Intelligent gate drive architecture

- Adjustable slew rate control

- 10mA to 1A peak pull current

- 20mA to 2A peak sink current

- Integrated Gate Driver Power Supply

- Supports 100% PWM duty cycle

- High-side charge pump

- Low-side linear regulator

- 6V to 60V operating voltage range

- Optional Integrated Buck Regulator

- LMR16006X SIMPLE SWITCHER® 4V to 60V Operating Voltage Range

- 4V to 60V Operating Voltage Range

- 0.8V to 60V, 600mA Output Capability

- Three optional integrated current-sense amplifiers (CSA)

- Adjustable gain (5, 10, 20, 40 V/V)

- Bidirectional or unidirectional support

- SPI and hardware interfaces available

- 6x, 3x, 1x, and independent PWM modes

- Supports 1.8V, 3.3V and 5V logic inputs

- Low Power Sleep Mode (12µA)

- 3.3V, 30mA linear regulator

- Compact QFN package and size

- Efficient system design with power blocks

- Integrated Protection Features

- VM Undervoltage Lockout (UVLO)

- Charge Pump Undervoltage (CPUV)

- MOSFET overcurrent protection (OCP)

- GATE DRIVER FAILURE (GDF)

- Thermal warning and thermal shutdown (OTW/OTSD)

- Fault status indicator (nFAULT)

APPLICATIONS

- Brushless DC (BLDC) motor modules and PMSMs

- Fans, pumps and servo drives

- Electric bicycles, electric scooters and electric vehicles

- Cordless garden and power tools, lawn mowers

- Cordless hoovers

- Drones, robots and remote-controlled toys

- Industrial and logistics robots
