(Recall, supply) Qorvo QPF4617/QPF4617TR13 Wi-Fi® 6E nonlinear front-end module.

Product introduction

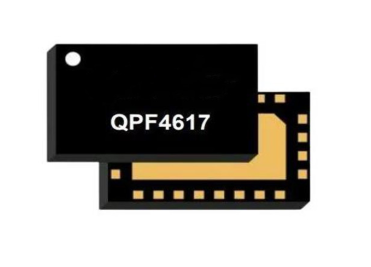

Qorvo® QPF4617 is a nonlinear integrated front-end module (FEM) designed for Wi-Fi 6e (802.11ax) systems. It is designed to work with DPD correction. The small size and integrated matching minimize the layout area in the application. Performance focuses on optimizing PA efficiency for 5V supply voltages to minimize power consumption so that the system uses digital predistortion to achieve the highest linear output power and front throughput of the RF chain.

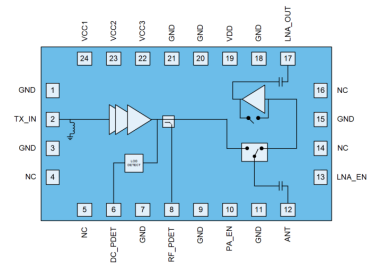

The QPF4617 provides a coupler with an RF output and a wide range, constant-slope voltage-logarithmic power detector for application feedback. It integrates a 6 GHz power amplifier (PA), a single-pole double-throw switch (SP2T), and a bypassable low noise amplifier (LNA) into a single device.

Product specification

Product category: RF front-end

Type: RF Front End

Operating frequency: 6 GHz

NF - Noise factor: 1.9dB

Working power supply voltage: 5 V

Installation style: SMD/SMT

Package/Box: SMD-24

Trademark: Qorvo

Development kit: QPF4617EVB

Gain: 14.5dB, 31 dB

P1dB - Compression point: 31 dBm

Product type: RF Front End

Factory packing quantity: 5000

Subcategory: Wireless & RF Integrated Circuits

trait

5935–7125MHz

PSAT = +32dBm

POUT = +24dBm HE20-30dB Dynamic EVM

POUT = +20dBm HE80-38 dB Dynamic EVM

POUT = +15dBm HE80-41 dB Dynamic EVM

POUT = +5dBm HE80-47dB Dynamic EVM

Optimized for +5V operation

Tx Gain: 31dB

Noise factor: 1.9dB

14.5dB Rx gain, 7.5dB bypass loss

Integrated RF and DC power supply detectors

Application

Access point

Wireless router

Residential gateway

Client device

Internet of Things
