(ADI) Sells DSP Digital Signal Processor ADSP-BF592KCPZ-2 Blackfin Embedded Processor

(ADI) Sells DSP Digital Signal Processor ADSP-BF592KCPZ-2 Blackfin Embedded Processor

Source:our siteTime:2023-09-06Views:

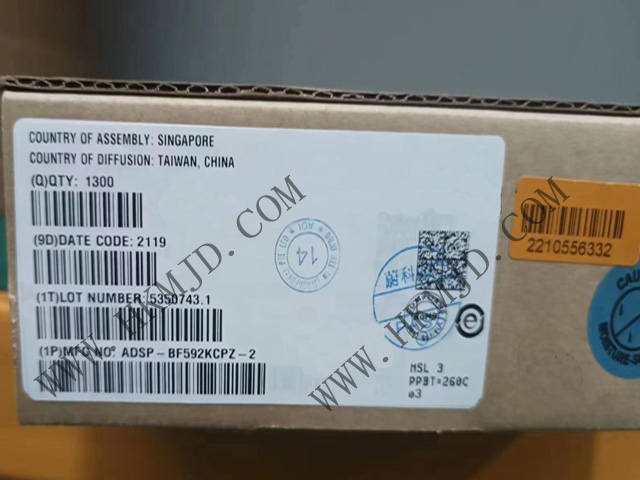

Shenzhen Mingjiada Electronics Co., Ltd (ADI) sells DSP Digital Signal Processor ADSP-BF592KCPZ-2 Low-cost Blackfin processor with optimised peripheral set for industrial and general-purpose applications, brand new and original, quality assurance!Desc…

Shenzhen Mingjiada Electronics Co., Ltd (ADI) sells DSP Digital Signal Processor ADSP-BF592KCPZ-2 Low-cost Blackfin processor with optimised peripheral set for industrial and general-purpose applications, brand new and original, quality assurance!


Description

The ADSP-BF592KCPZ-2 is a low-cost entry-level processor in the Blackfin processor product family offering 200 MHz and 400 MHz core clock speeds, a peripheral set that includes two SPORT ports, one PPI, two SPIs, four general-purpose counters, and a factory-programmed instruction ROM block containing the VDK RTOS and C runtime library, and its Features and costs are optimised for compute-intensive industrial, automotive and general-purpose applications that do not require external memory or executable flash.The ADSP-BF592KCPZ-2 is available in a low-cost 9x9mm LFCSP package and is available in commercial and industrial temperature grades as well as certified for automotive applications.


Features

High-performance Blackfin processor up to 400MHz

Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs, 40-bit shifters

RISC-style register and instruction model for easy programming and compiler-related support

Advanced debug, trace and performance monitoring features

Internal and I/O operation support for various supply voltages, see Operating Conditions

Off-chip regulator interface

64-pin (9 mm x 9 mm) LFCSP package


Applications

Consumer audio

Low-cost imaging devices

Smart Meters

Consumer handheld devices

Medical devices

Automotive Driver Assistance Systems
