(Broadcom) AFBR-S6PY0211 Thin Film Pyroelectric Single-Channel Sensor 4.64M/180nM TO-39

(Broadcom) AFBR-S6PY0211 Thin Film Pyroelectric Single-Channel Sensor 4.64M/180nM TO-39

Source:本站Time:2023-08-29Views:

Recovery, Supply (Broadcom) AFBR-S6PY0211 thin-film pyroelectric single-channel sensor, infrared detector 4.64M/180nM TO-39-3.Device description:Broadcoms thin-film thermoelectric infrared (IR) sensors for gas detection and substance concentration mea…

Recovery, Supply (Broadcom) AFBR-S6PY0211 thin-film pyroelectric single-channel sensor, infrared detector 4.64M/180nM TO-39-3.

Device description:

Broadcom's thin-film thermoelectric infrared (IR) sensors for gas detection and substance concentration measurement offer extremely high responsiveness, low chatter, and best-in-class thermal and electrical stability.

The analog single detector AFBR-S6PY0211 is equipped with a 4.46µm/180 nm filter. The device is mainly used for Co detection.

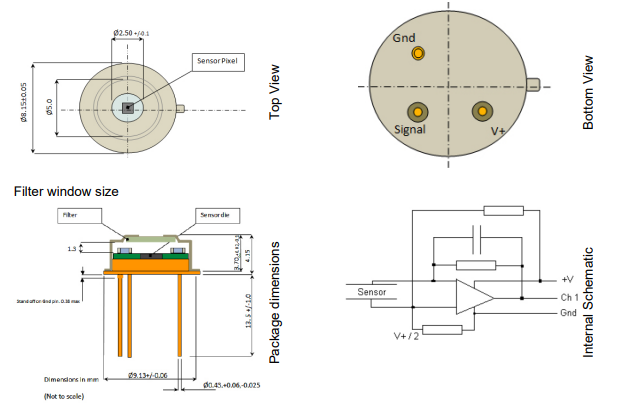

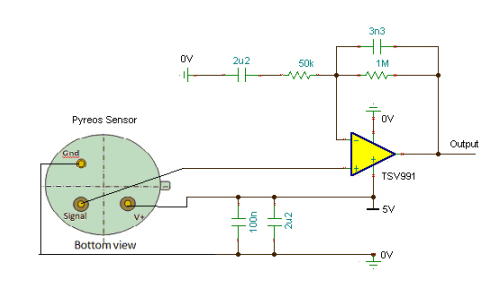

This high-performance current mode sensor has a signal-to-noise ratio of approximately 10,000 and provides fast, stable response over a wide operating frequency range. The sensor element is built into a low-noise circuit with an internal CMOS operational amplifier and a 10 GΩ feedback resistor that outputs a voltage signal centered on the half supply rail.


Features:

Fastest response, higher resolution and lower power consumption

High responsiveness and signal-to-noise ratio

Robust - Low chatter

Thermal stability against slow drift and thermal shock

Instant on

Long service life - stable pyroelectric material

The operating frequency is 1-40 Hz. First-class SNR above 10-15 Hz

Wide selection of filters

Extended temperature range

Less external gain required

Reliable and easy to use

Excellent hardware, software and algorithm development support

Scope of application:

NDIR Gas detection

Flame detection

NDIR Pellistor and electrochemical alternatives

Automobile gas analysis

Medical gas analysis

narcotize

Fluid analysis

Food safety

Terahertz detection

Energy measurement

Miniaturized design
