Shenzhen Mingjiada Electronics Co., Ltd supply Power Management IC LM5175RHFR 42V Wide Input Voltage 4 Switches Synchronous Buck/Boost Controller, Brand New Original, Quality Assurance!

Description

The Texas Instruments LM5175RHFR four-switch synchronous buck-boost controller is capable of regulating output voltages equal to, above, or below the input voltage.The LM5175 has a wide input voltage range of 3.5V to 42V to support a wide variety of applications.

The LM5175RHFR uses current mode control in both buck and boost modes of operation to provide excellent load and line regulation. The switching frequency is programmable through an external resistor and can be synchronised with an external clock signal. The device also features programmable soft-start and offers various protection features such as cycle-by-cycle current limit, input undervoltage lockout (UVLO), output overvoltage protection (OVP), and thermal shutdown. The device also features selectable continuous conduction mode (CCM) or discontinuous conduction mode (DCM).

Product Attributes

Output Type: Transistor Driver

Function: Boost/Buck

Output Configuration: Positive

Topology: Buck Boost

Number of Outputs: 1

Output Stage: 1

Voltage - Supply (Vcc/Vdd): 3.5V ~ 42V

Frequency - Switching: 100kHz ~ 600kHz

Synchronous Rectifier: Yes

Clock Synchronisation: Yes

Control Characteristics: Enable, Frequency Control, Power Good, Soft Start

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type : Surface Mount

Package/Housing : 28-VFQFN Exposed Pad

Supplier Device Package : 28-VQFN (5x4)

Base Product Number: LM5175

Applications

- Automotive start-stop systems

- Backup Battery and Supercapacitor Charging

- Power supplies for industrial PCs

- USB power supply

- LED Lighting

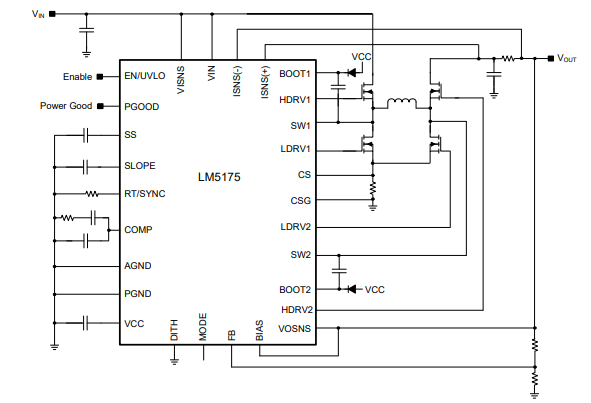

Simplified Schematic
