Mingjiada——[Supply] STM32G474RCT6 (ST) High-Performance 32-Bit Single-Core Microcontrollers

Mingjiada——[Supply] STM32G474RCT6 (ST) High-Performance 32-Bit Single-Core Microcontrollers

Source:our siteTime:2025-02-18Views:

Mingjiada——[Supply] STM32G474RCT6 (ST) High-Performance 32-Bit Single-Core MicrocontrollersSTM32G474RCT6——Mainstream Arm Cortex-M4 MCU 170 MHz with 256 Kbytes of Flash memory, Math Accelerator, HR Timer, High Analog level integrationSTM32G474RCT6 …

Mingjiada——[Supply] STM32G474RCT6 (ST) High-Performance 32-Bit Single-Core Microcontrollers


STM32G474RCT6——Mainstream Arm Cortex-M4 MCU 170 MHz with 256 Kbytes of Flash memory, Math Accelerator, HR Timer, High Analog level integration

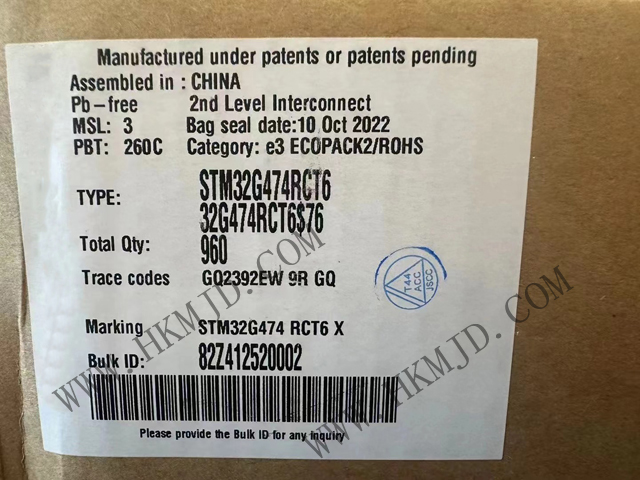

STM32G474RCT6 老.jpg


STM32G474RCT6 Feature Standard And Advanced Communication Interfaces Such As:

- Four I2Cs

- Four SPIs multiplexed with two half duplex I2Ss

- Three USARTs, two UARTs and one low-power UART.

- Three FDCANs

- One SAI

- USB device

- UCPD


Features Of STM32G474RCT6

Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait-state execution from Flash memory, frequency up to 170 MHz with 213 DMIPS, MPU, DSP instructions

Operating conditions——VDD, VDDA voltage range: 1.71 V to 3.6 V

Memories

- 512 Kbytes of Flash memory with ECC support, two banks read-while-write, proprietary code readout protection (PCROP), securable memory area, 1 Kbyte OTP

- 96 Kbytes of SRAM, with hardware parity check implemented on the first 32 Kbytes

- External memory interface for static memories FSMC supporting SRAM, PSRAM, NOR and NAND memories

- Quad-SPI memory interface

16-channel DMA controller

5 x 12-bit ADCs 0.25 µs, up to 42 channels. Resolution up to 16-bit with hardware oversampling, 0 to 3.6 V conversion range

7 x ultra-fast rail-to-rail analog comparators

6 x operational amplifiers that can be used in PGA mode, all terminals accessible


If you have a requirement, please call Mr. Chen for advice at:

Tel: +86 13410018555

E-mail: sales@hkmjd.com

Home page URL: www.hkmjd.com
