Available-Qorvo QPF4609 6GHz Wi-Fi 7 High Power Front-End Module

Available-Qorvo QPF4609 6GHz Wi-Fi 7 High Power Front-End Module

Source:our siteTime:2025-02-17Views:

Product introductionThe Qorvo QPF4609 is an integrated front-end module (FEM) designed for Wi-Fi 7 (802.11be) systems. The small size and integrated matching minimize layout areas in the application. Performance focuses on optimizing the PAs 5V supply…

Product introduction

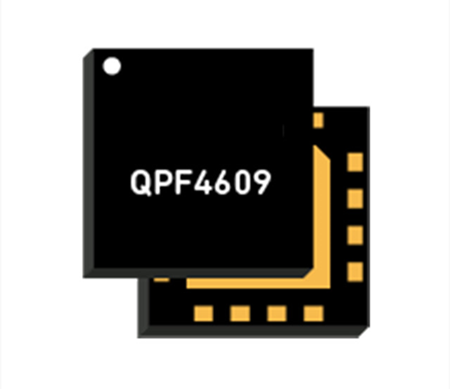

The Qorvo QPF4609 is an integrated front-end module (FEM) designed for Wi-Fi 7 (802.11be) systems. The small size and integrated matching minimize layout areas in the application. Performance focuses on optimizing the PA's 5V supply voltage to minimize power consumption, allowing systems using digital predistortion to achieve the highest linear output power and leading throughput of the RF chain. This is done over broadband width, supporting operation in all channels of UNII5-8 (5.925 to 7.125 GHz).


Integrated coupler with RF output for DPD feedback training. For power control, a wide range, constant-slope voltage-logarithm power detector is provided for application feedback. The QPF4609 integrates a 6 GHz power amplifier (PA), a single-pole double-throw switch (SP2T), a coupler structure, and a bypassable low noise amplifier (LNA) into a single device.


QPF4609 features

Output = +21 dBm MCS13 EHT320-43 dB Dynamic EVM

Output = +22 dBm MCS11 EHT320-38 dB Dynamic EVM

Output = +23 dBm MCS9 VHT80-35 dB Dynamic EVM

POUT = +26 dBm MCS0 HT20 spectrum template consistency

Optimized for +5 V operating voltage

32 dB Tx gain

1.8 dB noise figure

16 dB Rx gain & 6.5 dB bypass loss

Integrated RF coupler

Integrated DC logarithmic power detector


QPF4609 Application

Access point

Wireless router

Set-top box

Client device

Internet of Things
