Supply, (recycled TI chip) LMR33620APCQRNXRQ1 Automotive class 3.8V to 36V, 2A synchronous step-down converter IC positive adjustable 1V1 output 2A 12-VFQFN.

Overview:

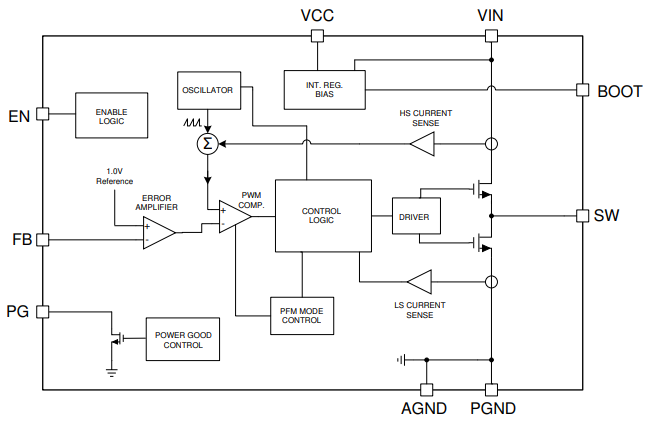

The LMR33620AP-Q1 regulator is an automotive standard, easy-to-use synchronous buck DC/DC converter that delivers superior efficiency for demanding applications. The LMR33620AP-Q1 is capable of driving load currents up to 2A using input voltages up to 36V. The LMR33620AP-Q1 provides excellent light load efficiency and output accuracy in a small solution size. Features such as power supply health status markers and precision enable terminals enable flexible yet easy-to-use solutions for a wide range of applications.

The LMR33620AP-Q1 automatically rewinds frequencies under light load conditions for increased efficiency. This device eliminates most of the external components through integrated technology and provides a pin arrangement designed for simple PCB layouts. Protection features include thermal shutdown, input undervoltage locking, cycle current limiting, and intermittent short circuit protection.

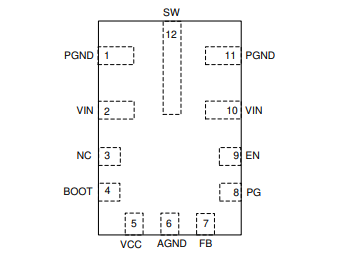

The LMR33620APQ1 comes in a 12-pin 3mm × 2mm new VQFN package with wettable sides.

Features:

• Complies with AEC-Q100 standard for automotive applications:

- Temperature Class 1: -40 °C to +125°C, TA

• Provide functional safety

- Documentation to assist in functional safety system design

• Designed for harsh automotive applications

- Input voltage range: 3.8V to 36V

- Output voltage range: 1V to 24V

- Output current: 2A

- 75mΩ/50mΩ RDS-ON power MOSFET

- Peak current mode control

- The minimum on-time is 68ns

- Frequency: 2.1MHz

- Integrated compensation network

• Low EMI and switching noise

- HotRod™ Package

- Parallel input current path

• Efficient power conversion under all loads

- Peak efficiency > 95%

- Turn-off static current down to 5µA

- Operating static current as low as 25µA

Create custom designs using LMR336x0AP-Q1 and with WEBENCH® PowerDesigner

Typical applications:

• Infotainment system and meter set

• Telematics control unit
