Sell ADI ADL5304ACPZ Log Converter IC Fibre Optic 32-LFCSP (5x5)

Sell ADI ADL5304ACPZ Log Converter IC Fibre Optic 32-LFCSP (5x5)

Source:our siteTime:2023-08-19Views:

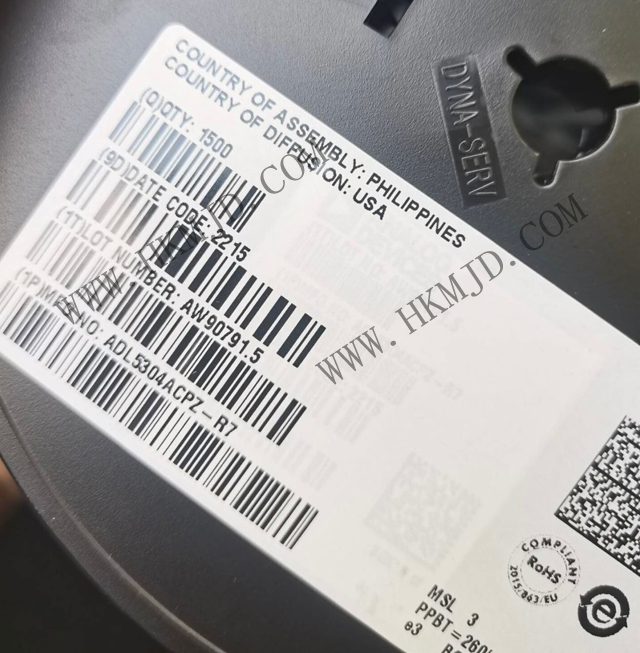

Shenzhen Mingjiada Electronics Co., Ltd. new and original sale ADI ADL5304ACPZ is a high-speed logarithmic converter with fast response and low noise over the entire 200 dB (1 pA to 10 mA) measurement range.OVERVIEWThe ADL5304ACPZ has a logarithmic sl…

Shenzhen Mingjiada Electronics Co., Ltd. new and original sale ADI ADL5304ACPZ is a high-speed logarithmic converter with fast response and low noise over the entire 200 dB (1 pA to 10 mA) measurement range.


Overview

The ADL5304ACPZ has a logarithmic slope of 10 mV/dB (200 mV/decade) nominal; other values are easily configured. The logarithmic intercept can be programmed over a wide range with an internal 100 nA current source, or externally for log-ratio applications.The default intercept of 3.162 fA sets the midpoint of the 100 nA measurement range at VLOG = 1.5 V. The logarithmic intercept is set at the midpoint of the 100 nA measurement range, and the logarithmic slope is set at the midpoint of the 100 nA measurement range.


Only a single 5 V positive supply is required to operate over the rated 1 pA to 3 mA input range. A dual supply extends the rated input current range to 10 mA.


Product Specification

Product Category: Logarithmic Amplifiers

Family: ADL5304

Number of Channels: 1 Channel

3 dB bandwidth: 4 MHz

Supply Voltage-Max: 10.5 V

Supply voltage - min: 4.5 V

Operating supply current: 20.8 mA

Minimum operating temperature: - 40 C

Maximum operating temperature: + 85 C

Mounting style: SMD/SMT

Package / Case: LFCSP-32

Bandwidth: 4 MHz

Trademark: Analog Devices

Dynamic range dB: 200 dB

GBP-Gain Bandwidth Products: -

Input Voltage Range - Max: 5.5 V

Humidity Sensitivity: Yes

Operating supply voltage: 4.5 V to 10.5 V

Pd-Power Dissipation: 600 mW


Applications

- Highly accurate optical power measurements

- Wide range baseband logarithmic compression

- Multifunction detector for high-speed APC loops
