(ON) EEPROM NV24C64DWVLT3G memory IC 64Kb I²C 1MHz 8SOIC

(ON) EEPROM NV24C64DWVLT3G memory IC 64Kb I²C 1MHz 8SOIC

Source:本站Time:2023-08-11Views:

Recovered and supplied (ON/ ON) EEPROM NV24C64DWVLT3G memory IC 64Kb IC 1MHz 8SOIC.Overview:The NV24C64LV is an EEPROM serial 64Kb I2C automotive grade device with an internal organization of 256 pages of 32 bytes each. The device supports standard (1…

Recovered and supplied (ON/ ON) EEPROM NV24C64DWVLT3G memory IC 64Kb I²C 1MHz 8SOIC.


Overview:

The NV24C64LV is an EEPROM serial 64Kb I2C automotive grade device with an internal organization of 256 pages of 32 bytes each. The device supports standard (100 kHz), fast (400 kHz), and accelerated (1 MHz) I2C protocols.

By providing the starting address, then loading 1 to 32 consecutive bytes into the page write buffer, and then writing all data to non-volatile memory in one internal write cycle. Data is read by providing a starting address and then continuously moved out of the data while automatically increasing the internal address count.

External address pins can address up to eight NV24C64LV devices on the same bus.


NV24C64DWVLT3G Technical parameters:

Memory type: non-volatile

Memory format: EEPROM

Technology: EEPROM

Storage capacity: 64Kb

Memory organization: 8K x 8

Memory interface: I²C

Clock frequency: 1 MHz

Write cycle time - word, page: 4ms

Access time: 400 ns

Voltage - Power supply: 1.7V ~ 5.5V

Operating temperature: -40°C ~ 125°C (TA)

Mounting type: Surface mount type

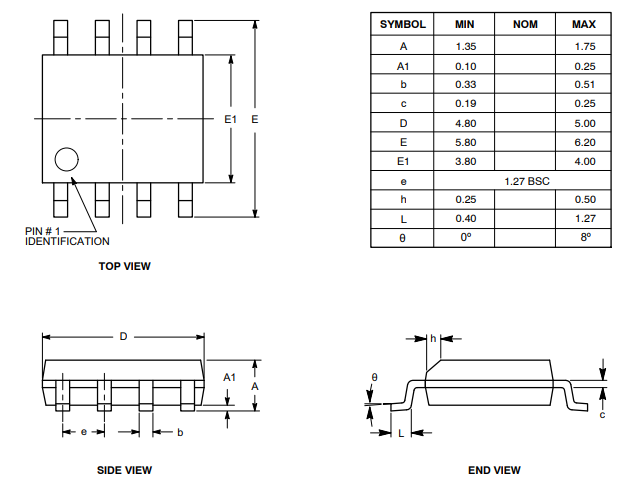

Package/housing: 8-SOIC (0.154", 3.90mm wide)

Supplier device package: 8-SOIC

Basic product number: NV24C64



If necessary, please contact Mr. Chen:

Email: sales@hkmjd.com

Company website: www.hkmjd.com
