Dual core SHARC+ DSP (ADI) AD21584WCBCZ4A12 digital signal processor 450MHz.

Overview:

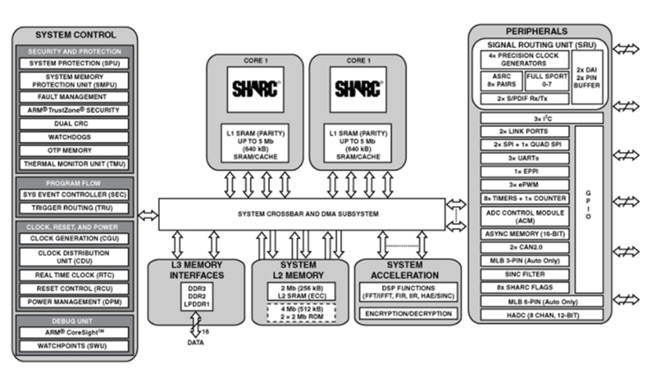

The ADSP-21584 processors are part of a new, high-performance, energy-efficient, real-time family that uses two enhanced SHARC+® cores and advanced DSP accelerators (FFT, FIR, IIR) to deliver floating-point performance above 24 gigabits per second. The ADSP-SC58x and ADSP-2158x families consume less than 2 watts of power, making the new processor family more than five times more efficient than previous SHARC products. This benefit provides industry-leading digital signal processing performance for applications where thermal management sets power limits or does not allow for higher fan costs and lower fan reliability. Such applications include automotive, consumer electronics and professional audio, multi-axis motor control and energy distribution systems.

The ADSP-2158x series is designed for applications that require DSP coprocessors and include two SHARC+ cores and a set of peripherals that match the DSP core.

Features:

32/40 bit IEEE floating point arithmetic

32-bit fixed-point multiplier, including 64-bit multiplication and 80-bit accumulation

No arithmetic pipeline

Hardware supports 6 levels of nested zero-overhead hardware loops

Rich algebraic assembly language syntax

The instruction set supports conditional operators, bit operations, division and square roots, bit field insertion and extraction

DMA allows zero-overhead background transfers at full clock rates without processor intervention

AD21584WCBCZ4A12 Technical parameters:

Type: Fixed point/floating point

Interface: CAN, DDR2, DDR3, EBI/EMI, Ethernet, DAI, I²C, LPDDR1, MMC/SD/SDIO, SPI, SPORT, UART/USART, USB OTG

Clock rate: 450MHz

Non-volatile memory: ROM (512kB)

On-chip RAM: 640kB

Voltage - I/O: 3.30V

Voltage - core: 1.10V

Operating temperature: -40°C ~ 105°C (TA)

Mounting type: Surface mount type

Package/housing: 349-LFBGA, CSPBGA

Supplier Package: 349-CSPBGA (19x19)
