Shenzhen Mingjiada Electronics Co., Ltd [Supply & Demand TI] Automotive Real-Time Microcontroller F280025PTSR C2000™ 32-bit MCU with 100MHz Frequency, FPU, TMU, 128kB Flash Memory

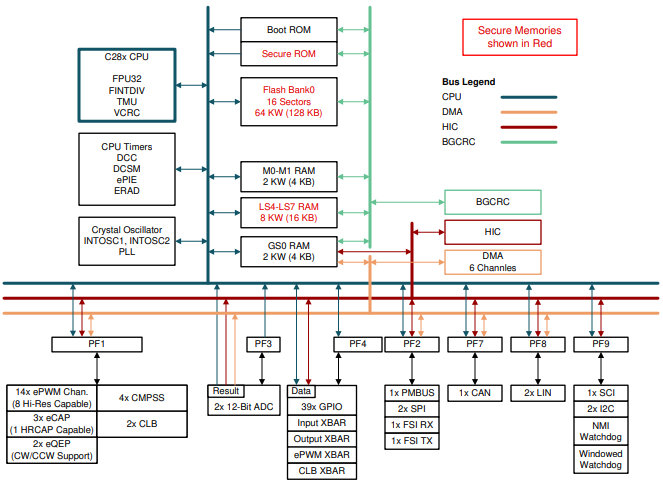

Device Overview

The F280025PTSR is one device in a family of C2000™ real-time microcontrollers, a family of scalable, ultra-low latency devices designed to improve the efficiency of power electronics including, but not limited to: high power densities, high switching frequencies, and support for the use of GaN and SiC technologies.

These applications include:

- Industrial motor drives

- Motor control

- Photovoltaic inverters

- Digital power supplies

- Electric vehicles and transport

- Sensing and Signal Conditioning

The real-time control subsystem is based on TI's 32-bit C28x DSP core, which delivers 100MHz of signal processing performance for floating-point or fixed-point code running from on-chip flash or SRAM. The C28x CPU is further enhanced by the Trigonometric Math Unit (TMU) and the VCRC (cyclic redundancy check) extended instruction set, which speeds up algorithms critical to real-time control systems.

Features

- TMS320C28x 32-bit DSP core (at 100MHz)

- IEEE 754 floating-point unit (FPU)

- Fast integer division support (FINTDIV)

- Trigonometric Maths Unit (TMU)

- Support for nonlinear proportional integral differentiation (NLPID) control

- CRC engine and instructions (VCRC)

- Ten hardware breakpoints (including ERAD)

- On-chip memory

- 128KB (64KW) Flash (ECC protected)

- 24KB (12KW) RAM (ECC protected or parity protected)

- Dual-area security

- Clock and System Control

- Two internal zero-pin 10MHz oscillators

- On-chip crystal oscillator or external clock input

- Windowed watchdog timer module

- Lost Clock Detection Circuit

- Dual Clock Comparator (DCC)

- 3.3V single supply

- Internal VREG generation

- Undervoltage Reset (BOR) Circuit
