(Supply, recall) 150MHz NXP LPC55S28JBD100E Mainstream microcontroller MCU based on Cortex®-M33 core, if you need, please contact us!

Overview:

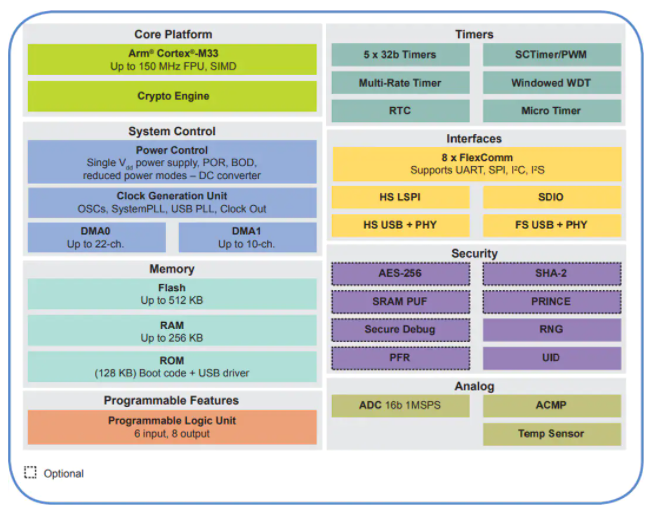

The LPC55S28JBD100E ARM® Cortex®-M33 microcontroller (MCU) offers the perfect balance between security, performance efficiency and system integration for the general embedded and industrial iot markets. The LPC55S2x MCU family combines the high performance efficiency of the Cortex-M33 core with multiple high-speed interfaces, integrated power management ics, and rich analog integrations. These devices are part of the LPC5500 MCU family and feature cost-effective 40nm NVM process technology with pin, software and peripheral compatibility for ease of use and reduced time to market. The family is powered by NXP's comprehensive support package, including MCUXpresso software and tools, and low-cost development boards.

The LPC55S2x MCU family offers a variety of connectivity options, including high-speed USB with on-chip PHY, high-speed SPI, SDIO, and the common FlexComm interface (configurable as SPI/I2C/I2S, UART). Security features include SRAM Physically unclonable functionality (PUF) for trusted root and configuration, hardware symmetric encryption/decryption engine, security debugging, and PRINCE engine for real-time execution of encrypted images.

LPC55S28JBD100E Technical parameters:

Core processor: ARM® Cortex®-M33

Kernel specification: 32-bit

Speed: 150MHz

Connectivity: Flexcomm, I²C, SDIO, SPI, UART/USART, USB

Peripheral: Undervoltage detection/reset, DMA, I²S, POR, PWM, RNG, WDT

Number of I/ OS: 64

Program storage capacity: 512KB (512K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 256K x 8

Voltage - power supply (Vcc/Vdd) : 1.8V ~ 3.6V

Data converter: A/D 10x16b SAR

Oscillator type: Internal

Operating temperature: -40°C ~ 105°C (TA)

Mounting type: Surface mount type

Package/housing: 100-LQFP bare pad

Supplier Device Package: 100-HLQFP (14x14)

Applications:

Consumer electronics

Diagnostic equipment

Building control and automation

Security application

Industrial Internet of Things

General embedded
