(Infineon) The XMC1302T038X0200AB is based on a 32-bit Cortex-M0 core 32MHz industrial MCU

(Infineon) The XMC1302T038X0200AB is based on a 32-bit Cortex-M0 core 32MHz industrial MCU

Source:本站Time:2023-07-25Views:

Industrial MCU (Infineon) XMC1302T038X0200AB is based on a 32-bit Cortex-M0 core 32MHz microcontroller IC.Product Details:(Infineon) XMC1302T038X0200AB 32-bit ARM Cortex-M0 industrial MCUS meet the real-time control needs of motor control or digital p…

Industrial MCU (Infineon) XMC1302T038X0200AB is based on a 32-bit Cortex-M0 core 32MHz microcontroller IC.


Product Details:

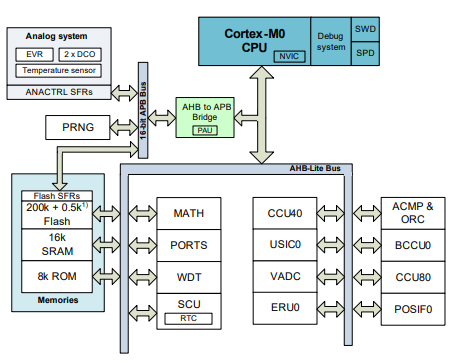

(Infineon) XMC1302T038X0200AB 32-bit ARM® Cortex-M0 industrial MCUS meet the real-time control needs of motor control or digital power conversion applications. The XMC1300 features a 64MHz MATH coprocessor (DIV, COS, SIN), position interface (POSIF), and precise timer /PWM (CCU8). The device also offers up to 64-bit resolution, asymmetric PWM, dead-zone insertion, fractional clock dividers, Shadow transitions, and external event triggers. The device is a cost-effective solution for field-oriented control (FOC) of electric motors.




Features:

8-200KB flash memory, 16KB RAM

Supply voltage range: 1.8V - 5.5V

2-channel USIC (configurable as SPI, UART, IIC, IIS)

8 16-bit dedicated timers and dead zones are generated

Up to 3 comparators

12-channel 12-bit ADC, 2x parallel sampling

Peripheral clock: 64KHZ

Temperature sensor

The system includes a real-time clock and a watchdog timer

Pseudo-random number generator

Package: VQFN/TSSOP

Temperature range: -40°... 85 ° / 105 °

The analog comparator has an input offset voltage of only 3mV and a propagation delay of 30ns


Applications:

• Motor control (eBike, power tools)

• Intelligent lighting

• Switching mode power supply
