Recall, Supply (NXP) QorIQ® Layerscape LS1021ASE7KQB communication Processor 2 cores, 32-bit 1GHz 525-FCPBGA.

Product Details:

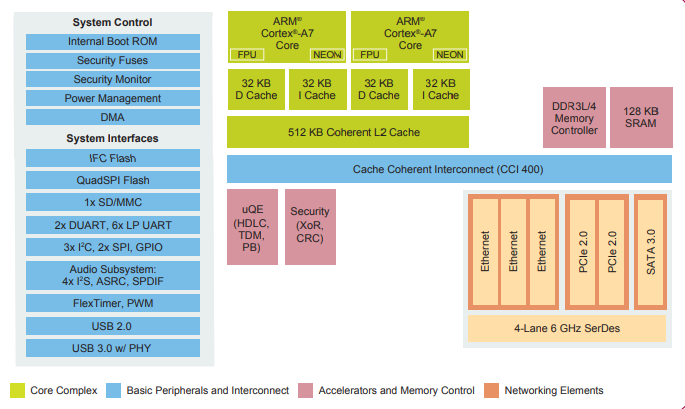

The QorIQ® Layerscape LS1021A communications processor offers a variety of integrated and high-power features for fanless small enterprise networking applications. The LS1021A processor features a dual-core Arm® Cortex-A7 core operating at frequencies up to 1 GHz and is designed to achieve CoreMark® performance in excess of 7,000. In addition, the processor offers virtualization support, advanced security features, the broadest range of high-speed connectivity and optimized peripherals for processors with less than 3W power consumption.

The QorIQ LS1021A processor features an integrated LCD controller, a CAN controller for implementing industrial protocols, DDR3L/4 operating at up to 1600MHz, an integrated security Engine and QUICC Engine®, and ECC protection for L1 and L2 caches. The LS1021A processor is pin and software compatible with the QorIQ LS1020A and LS1022A processors.

LS1021ASE7KQB Technical Parameters:

Core processor: ARM® Cortex®-A7

Number of cores/bus width: 2 cores, 32-bit

Speed: 1.0GHz

Coprocessor /DSP: -

RAM controller: DDR3L, DDR4

Graphics acceleration: -

Display and interface controller: 2D-ACE

Ethernet: GbE (3)

SATA: SATA 6Gbps (1)

USB: USB 3.0 (1) + PHY

Voltage -I /O: -

Operating temperature: 0°C ~ 105°C

Security Features: Security sheath, TrustZone®

Mounting type: Surface mount type

Package/Case: 525-FBGA, FCBGA

Supplier Package: 525-FCPBGA (19x19)

Additional interface: -

Basic product number: LS1021

Applications:

• Industry

- Industrial HMI entry level

- Programmable Logic Controller (PLC)

• Motor control

- Motion control and robotics

• Network

- Industrial Gateway

- Internet of Things gateway

- M2M gateway

- Wireless LAN (WLAN) access point
