Supply VICOR Isolation Module DCM2322TA5N13A2T60 Isolated Voltage Regulated DC-DC Converter

Supply VICOR Isolation Module DCM2322TA5N13A2T60 Isolated Voltage Regulated DC-DC Converter

Source:our siteTime:2023-07-05Views:

Mingjiada Electronics New and Original Supply VICOR Isolation Module DCM2322TA5N13A2T60 Isolated Regulated DC-DC Converter 120W 43-154Vin 12Vout Class TManufacturer: Vicor CorporationModel No: DCM2322TA5N13A2T60Batch: Latest 23+Details: Isolation modu…

Mingjiada Electronics New and Original Supply VICOR Isolation Module DCM2322TA5N13A2T60 Isolated Regulated DC-DC Converter 120W 43-154Vin 12Vout Class T


Manufacturer: Vicor Corporation

Model No: DCM2322TA5N13A2T60

Batch: Latest 23+

Details: Isolation module DC converter 1 output 12V 10A 43V - 154V input


Features and Benefits

- Isolated, regulated DC-DC converter

- Up to 120W at 10.00A continuous

- 90.4% peak efficiency

- 481W/in3 power density

- Wide input range 43 - 154VDC

- Safe Extra Low Voltage (SELV) 12.0V rated output

- 3000VDC isolation

- ZVS high frequency switching

Enables low profile, high density filtering

- Dual modes of operation:

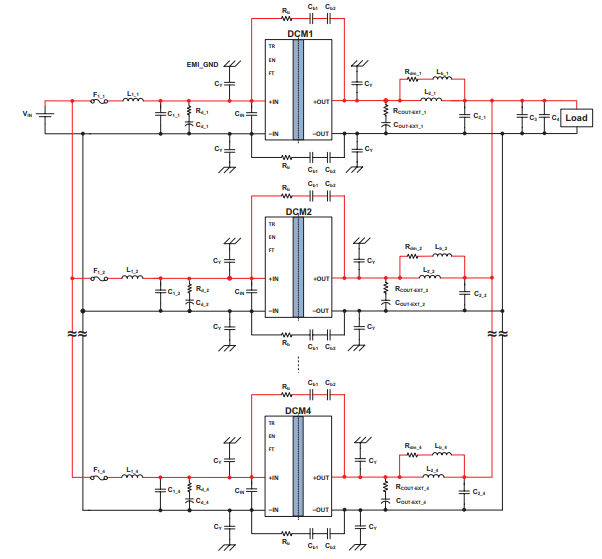

Array mode

- Up to 8 units - 960W

- No need to reduce power levels

- Shared strategy allows for different line voltages Across the array

Enhanced VOUT regulation mode

- Independent 120W

- Fully operational current limiting

- OV, OC, UV, short-circuit and thermal shutdown


Specification

- 3000Vdc isolation

- Internal operating temperature

- T class temperature range: -40°C to 125°C

- M class temperature range: -55°C to 125°C

- Storage temperature

- Class T temperature range: -40°C to 125°C

- M class temperature range: -65°C to 125°C

- Package size: 24.84mm x 22.80mm x 7.21mm


Typical applications

- Railway transport

- Defence/Aerospace

- Industrial

- Process control
