Ethernet IC 88SE9171A2-NNX2C000 Single Channel PCIe 2.0 to Single Port 6 Gbps SATA I/O Controller

Ethernet IC 88SE9171A2-NNX2C000 Single Channel PCIe 2.0 to Single Port 6 Gbps SATA I/O Controller

Source:our siteTime:2023-07-04Views:

Shenzhen Mingjiada Electronics Co., Ltd (Supply, Recycle) Marvell Ethernet IC 88SE9171A2-NNX2C000 Single Channel PCIe 2.0 to Single Port 6 Gbps SATA I/O Controller New Original Quality Assurance!Product Description:The 88SE9171A2-NNX2C000 is a single-…

Shenzhen Mingjiada Electronics Co., Ltd (Supply, Recycle) Marvell Ethernet IC 88SE9171A2-NNX2C000 Single Channel PCIe 2.0 to Single Port 6 Gbps SATA I/O Controller New Original Quality Assurance!


Product Description:

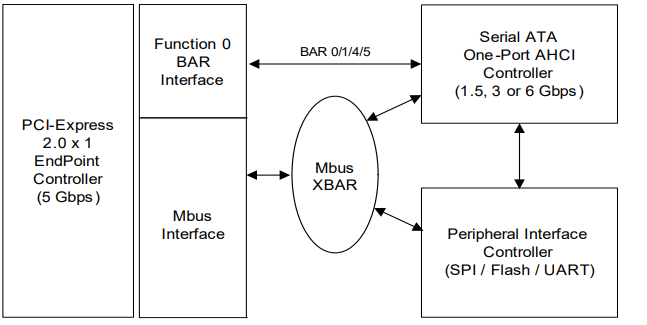

The 88SE9171A2-NNX2C000 is a single-port, 6 Gbps SATA I/O controller with a single-lane PCIe 2.0 interface. The 88SE9171A2-NNX2C000 supports Serial ATA International Organization compliant devices: Serial ATA Revision 3.0 specification.


Features

PCIe

PCIe 2.0 endpoint device.

Supports one channel.

Compliant with PCIe 2.0 specification.

Supports communication speeds of 2.5Gbps and 5.0Gbps.

Supports IDE programming interface registers for SATA controllers.

Supports AHCI programming interface registers for SATA controllers.

Supports aggressive power management.

Support for error reporting, recovery and correction.

Support for Message Signal Interrupt (MSI).

SATA controllers

Compliant with Serial ATA specification 3.0.

Supports communication speeds of 6.0Gbps, 3.0Gbps and 1.5Gbps.

Supports programmable transmitter signal levels.

Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x and Gen 3i.

Supports one SATA port.

Support for AHCI 1.0 and IDE programming interfaces.

Supports Native Command Queuing (NCQ).

Support for port multiplier FIS-based switching or command-based switching.

Support for partial and hibernation power management states.

Supports interleaved boot.


The company also recovers Marvell Ethernet IC 88SE9171A2-NNX2C000 at high price from regular channel sources only, such as agents, traders, end factories, etc.


If you have any demand, please contact Mr. Chen at

Tel: +8613410018555

E-mail: sales@hkmjd.com

Company website: www.hkmjd.com
