Device overview:

The STM32G0 32-bit microcontroller (MCU) is suitable for consumer, industrial and home appliance applications and can be readily used for Internet of Things (IoT) solutions. These microcontrollers are highly integrated and based on a high-performance ARM® Cortex®-M0+ 32-bit RISC core operating at up to 64MHz.

The STM32G0C1 microcontroller features up to 512KB of embedded flash memory and 144kB of RAM memory. It supports USB full speed host/device, integrated USB Type-C controller and transceiver, FDCAN protocol, and up to 8 UART.

STM32G0C1CCU6 (256KB) Technical Specifications:

Core processor: ARM® Cortex®-M0+

Kernel specification: 32-bit

Speed: 64MHz

Connection capability: CANbus, HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB

Peripheral: Undervoltage detection/reset, DMA, I²S, POR, PWM, WDT

Number of I/ OS: 44

Program storage capacity: 256KB (256K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 144K x 8

Voltage - power supply (Vcc/Vdd) : 1.7V ~ 3.6V

Data converter: A/D 17x12b SAR; D/A 2x12b

Oscillator type: external, internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

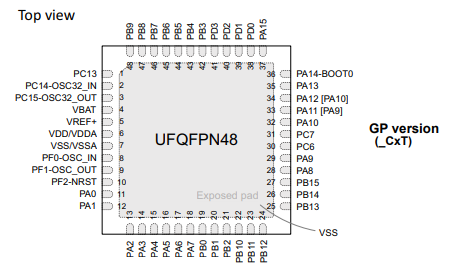

Package/housing: 48-UFQFN bare pad

Supplier Device Package: 48-UFQFPN (7x7)

STM32G0C1CEU6 (512KB) Device Specifications:

Core processor: ARM® Cortex®-M0+

Kernel specification: 32-bit

Speed: 64MHz

Connection capability: CANbus, HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB

Peripheral: Undervoltage detection/reset, DMA, I²S, POR, PWM, WDT

Number of I/ OS: 44

Program storage capacity: 512KB (512K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 144K x 8

Voltage - power supply (Vcc/Vdd) : 1.7V ~ 3.6V

Data converter: A/D 17x12b SAR; D/A 2x12b

Oscillator type: external, internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

Package/housing: 48-UFQFN bare pad

Supplier Device Package: 48-UFQFPN (7x7)

Applications:

• Consumer applications

• USB/USB-C applications

• Energy saving applications (battery powered)

• Industrial equipment

• Control applications

• Motor control applications

• Household appliances

• Home automation

• Electric bicycle

• Air conditioning
