[ST Dealer] VNQ500PEPTR-E (PMIC) Power switch/driver 1:1 N channel 400mA

[ST Dealer] VNQ500PEPTR-E (PMIC) Power switch/driver 1:1 N channel 400mA

Source:本站Time:2023-07-01Views:

Product Details:The VNQ500PEPTR-E is a monolithic device designed with ST Semiconductors VIPower M0-3 technology for driving one end of any load band connected to ground. Active current limiting coupled with locking thermal shut-off prevents equipment…

Product Details:

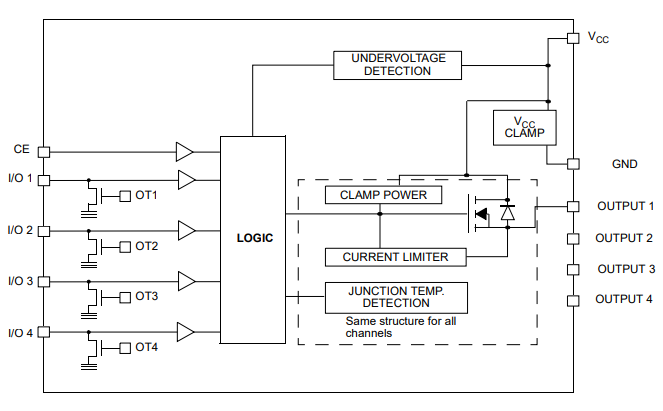

The VNQ500PEPTR-E is a monolithic device designed with ST Semiconductor's VIPower M0-3 technology for driving one end of any load band connected to ground. Active current limiting coupled with locking thermal shut-off prevents equipment overload.

In the case of excessive temperature in one channel, the relative I/O pin is pulled down. Device case ground automatic shutdown pin disconnects.


Features:

• CMOS compatible with I/O

• Chip enabled

• Overtemperature protection and diagnosis

• Current restrictions

• Short-circuit load protection

• Undervoltage off

• Prevent land loss

• Very low standby current

• Compliant with European Directive 2002/95/EC


VNQ500PEPTR-E Technical parameters:

Switch type: Universal

Output number: 4

Ratio - Input: Output: 1:1

Output configuration: High end

Output type: N channel

Interface: On/off

Voltage - load: 5.5V ~ 36V

Voltage - supply (Vcc/Vdd) : Not required

Current - Output (Max.) : 400mA

On-resistance (typical) : 500 milliohm (Max)

Input type: non-inverting

Features: -

Fault protection: Current limiting (fixed), overtemperature, UVLO

Operating temperature: -40°C ~ 150°C (TJ)

Mounting type: Surface mount type

Vendor device package: PowerSSO-12

Package/housing: 12-PowerLSOP (0.154", 3.90mm wide)
