Mingjiada Corporation supplies TI Automotive Interface DS90UB960WRTDRQ1 DS90UB960-Q1 Quad 4.16Gbps FPD-Link III Deserializer Hub with Two MIPI CSI-2 Ports

DS90UB960WRTDRQ1 Product Overview:

The Texas Instruments DS90UB960-Q1 FPD-Link III Deserializer is a multi-function sensor hub capable of connecting serialized sensor data received from four separate video data streams via the FPD-Link III interface. When paired with the DS90UB953-Q1 serialiser, the DS90UB960-Q1 can receive data from sensors such as imagers supporting Full HD 1080p/2MP resolution at 60Hz frame rate. The data is received and aggregated into a MIPI CSI-2 compliant output for interconnection to downstream processors. A second MIPI CSI-2 output port can be used to provide additional bandwidth or to provide a second copy output for data entry and parallelism.

DS90UB960-Q1 features

- Compliant with AEC-Q100 standard for automotive applications:

- Device temperature class 2: -40°C to +105°C Ambient operating temperature range

- Quad 4.16Gbps deserialiser hub aggregates data from up to 4 sensors simultaneously

- Support for 2 megapixel sensors with Full HD 1080p resolution at 60Hz frame rate

- Accurate multi-camera synchronisation

- MIPI DPHY version 1.2/CSI-2 version 1.3 compliant

- 2 MIPI CSI-2 output ports

- Each CSI-2 port supports 1, 2, 3, 4 data channels

- CSI-2 data rate scalability: 400Mbps/800Mbps/1.2Gbps/1.5Gbps/1.6Gbps per data channel

- Port Replication Mode

- Functionally safe

- Documentation to aid in ISO 26262 system design

- Ultra-low data and control path latency

- Supports single-ended coaxial (including power over cable (PoC)) or shielded twisted pair (STP) cables

- Adaptive receive equalisation

- Dual I2C ports with fast mode enhancement (up to 1Mbps)

- Flexible GPIO for sensor synchronisation and diagnostics

- Compatible with DS90UB953-Q1, DS90UB935-Q1, DS90UB933-Q1, DS90UB913A-Q1 serializers

- Internal programmable precision frame synchronisation generator

- Line fault detection and advanced diagnostics

DS90UB960-Q1 Applications

- Automotive ADAS

- Rear View Camera (RVC)

- Surround View Systems (SVS)

- Camera Monitoring Systems (CMS)

- Front View Camera (FC)

- Driver Monitoring Systems (DMS)

- Satellite radar, Time of Flight (ToF), Lidar sensor modules and sensor fusion

- Safety and Surveillance

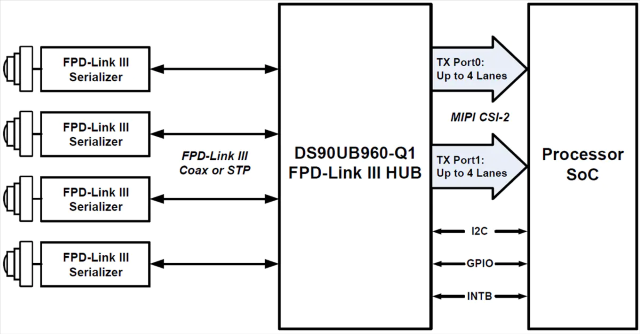

Typical application schematics
