[Recovered IGBT module] FAM65CR51DZ2 Two independent 650V 33A 160W through hole APMCD-B16

[Recovered IGBT module] FAM65CR51DZ2 Two independent 650V 33A 160W through hole APMCD-B16

Source:本站Time:2023-06-17Views:

Product Details:The FAM65CR51DZ2 is an IGBT equipped with two independent modules. Manufactured using extensive experience in automotive ignition IGBT and Intelligent Power Module (IPM) development and packaging expertise, the PIM is a power solution …

Product Details:

The FAM65CR51DZ2 is an IGBT equipped with two independent modules. Manufactured using extensive experience in automotive ignition IGBT and Intelligent Power Module (IPM) development and packaging expertise, the PIM is a power solution that fully complies with stringent industry standards. In addition, the modular solution provides users with a fully integrated supply chain for silicon and packaging, ensuring high quality and cost efficiency.


The power integration module consists only of power switches and rectifiers and is available in a variety of topologies. Common topologies include three-phase inverter stages with input bridge rectification and braking, boost converters, and multilevel inverters.


Features:

• High speed 1200V and 650V IGBT with low VCESAT

• Options are available with and without pre-coated thermal interface material (TIM)

• Option with press pin and solder pin

• Bypass and reverse parallel diodes

• Solder pin and press pin options are available


Applications:

• Solar inverter

• UPS inverter

• MPPT booster level

• Battery charger boost level


Device Specifications:

IGBT type: -

Configuration: Two independent

Voltage-emitter breakdown (Max) : 650 V

Current-collector (Ic) (Max.) : 33 A

Power - Max. : 160 W

Vce(on) (Maximum value) for different Vge and Ic: -

Input capacitance (Cies) for different Vce: 4.86NF-@400V

Input: Standard

NTC thermistor: None

Operating temperature: -55°C ~ 150°C (TJ)

Installation type: Through hole

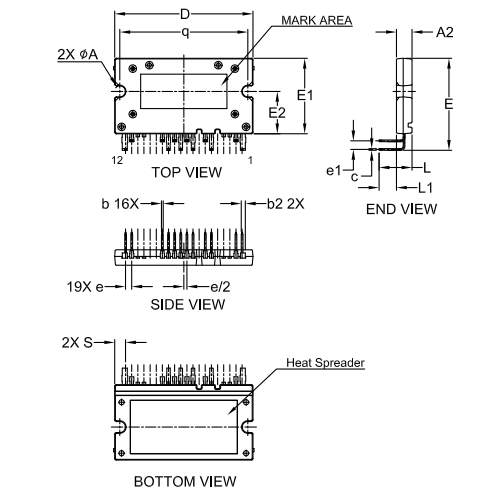

Package/housing: 12-SSIP bare pad, molded lead

Supplier device package: APMCD-B16

Basic product number: FAM65


If there is any need, please call and contact Mr. Chen:

Email: sales@hkmjd.com

Company website: www.hkmjd.com
