Sale Panasonic 16SVPG270M 270 µF 16 V Aluminium Polymer Capacitor Radial, Can - SMD

Sale Panasonic 16SVPG270M 270 µF 16 V Aluminium Polymer Capacitor Radial, Can - SMD

Source:our siteTime:2023-06-13Views:

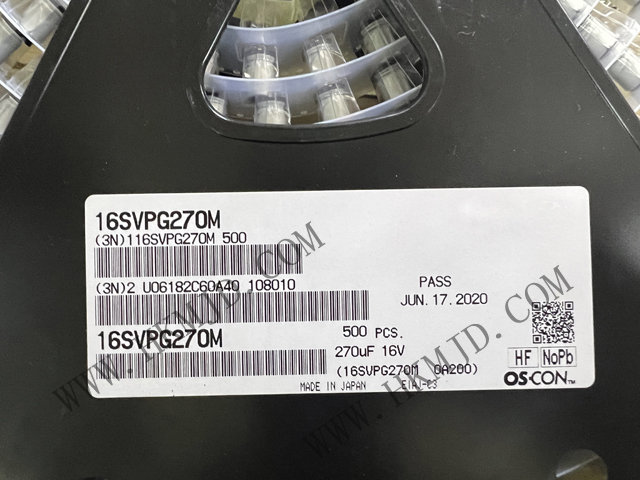

Shenzhen Mingjiada Company original stock for sale Panasonic "16SVPG270M" 270 F 16 V Aluminum Polymer Capacitor Radial, Can - SMD 8 milliohms 5000 hours at 105CPanasonic SVPG OS-CON aluminium solid capacitors are surface mount type (SMT) con…

Shenzhen Mingjiada Company original stock for sale Panasonic "16SVPG270M" 270 µF 16 V Aluminum Polymer Capacitor Radial, Can - SMD 8 milliohms 5000 hours at 105°C


Panasonic SVPG OS-CON aluminium solid capacitors are surface mount type (SMT) conductive polymer aluminium solid capacitors. These capacitors have a low ESR rating of 6.5mΩ to 30mΩ and provide stable characteristics over the -55ºC to 105ºC operating temperature range. SVPG capacitors offer high ripple currents up to 7.5A and can be used as smoothing capacitors. These capacitors are RoHS compliant and halogen free.


16SVPG270M Device Specifications

Series: OS-CON™, SVPG

Type: Polymer

Capacitance: 270 µF

Tolerance: ±20%

Voltage - Rated: 16 V

ESR (Equivalent Series Resistance): 8 milliohms

Service life at different temperatures: 5000 hours at 105°C

Operating temperature: -55°C ~ 105°C

Rating: -

Application: General purpose

Ripple current at various low frequencies: 290 mA @ 120 Hz

Ripple current at different high frequencies: 5.8 A @ 100 kHz

Lead spacing: -

Size / Dimension: 0.248" diameter (6.30mm)

Height - Mount (max): 0.394" (10.00mm)

Surface Mount Pad Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)

Mounting Type: Surface Mount Type

Package / Case: Radial, Can - SMD


SVPG OS-CON aluminium capacitors are ideally suited for outdoor applications.
