(Infineon) BTS5090-2EKA Power Switch/Driver IC N Channel 2.5A DSO-14

(Infineon) BTS5090-2EKA Power Switch/Driver IC N Channel 2.5A DSO-14

Source:本站Time:2023-05-22Views:

Product Introduction:The BTS5090-2EKA is a 90mΩ dual-channel intelligent high-voltage power switch embedded in the PG-DAC-14-40 EP in an exposed Pad package for protective features and diagnostics. The power transistor consists of an N-channel vertic…

Product Introduction:

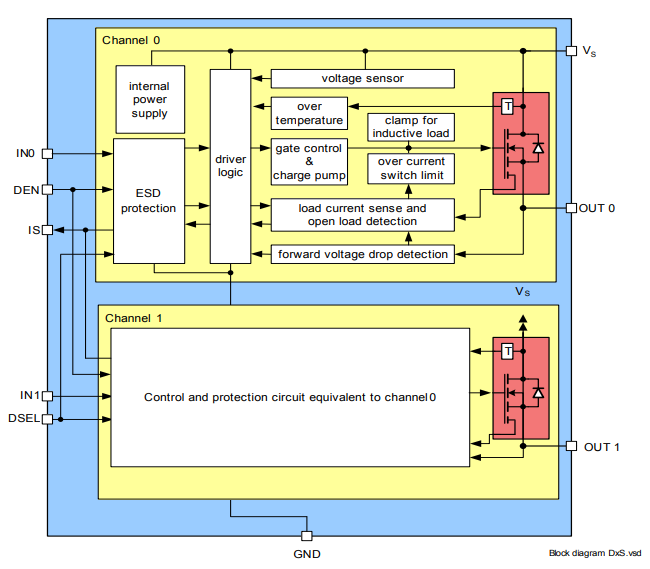

The BTS5090-2EKA is a 90mΩ dual-channel intelligent high-voltage power switch embedded in the PG-DAC-14-40 EP in an exposed Pad package for protective features and diagnostics. The power transistor consists of an N-channel vertical power MOSFET pumped with charge. The device integrates Smart6 technology. It is specifically designed to drive lights up to 1 * P21W, as well as leds in harsh automotive environments.



Basic features:

• Dual-channel device

• Very low standby current

• 3.3V and 5v compatible logic input

• Electrostatic discharge protection (ESD)

• Optimized electromagnetic compatibility

• Logically independent of the load

• Very low power DMOS leakage current in the off state

• Green products (RoHS standard)

• AEC qualified


The BTS5090-2EKA device is designed for:

• Suitable for resistance, inductance and capacitance loads

• Replace electromechanical relays, fuses and discrete circuits

• Best for high surge current loads, such as lamps
