Trade Name:Ultra Low Power SoC
Brand:SILICON
Particular Year:25+
Package:QFN-32
Delivery Date:New and original
Stock: 2000pcs
The EFR32BG21B010F512IM32-D is a Bluetooth Low Energy SoC that features an 80 MHz ARM Cortex-M33 core, offering outstanding processing capabilities. The integrated security subsystem provides leading security functions. This greatly reduces the risks of IoT security vulnerabilities and intellectual property damage. This device also includes Secure Vault, 512 kB flash memory, 64 kB RAM, and adopts QFN32 packaging. With a maximum output power of up to 10.5 dBm and an outstanding receiving sensitivity of -97.1 (1 Mbit/s GFSK) dBm, the EFR32BG21B010F512IM32-D can provide a powerful RF link. So as to achieve reliable communication in Bluetooth 5.4 and Bluetooth mesh network applications.
Main specifications
Type: BLE Wireless SoC
Core: ARM Cortex M33
Operating frequency: 2.4 GHz
Maximum data rate: 2 Mbps
Output power: 10 dBm
Sensitivity: -94 dBm
Power supply voltage - minimum: 1.71V
Power supply voltage - maximum: 3.8V
Received power supply current: 8.8 mA
Transmission power supply current: 33.8 mA
Program memory size: 512 kB
Minimum operating temperature: -40 ° C
Maximum operating temperature: + 125 ° C
Packaging/Cabinet: QFN-32
Packaging: Tray
ADC resolution: 12 bits
Data bus width: 32 bits
Data RAM size: 64 kB
Data Ram type: RAM
Height: 0.85mm
Interface types: I2C, I2S, UART
Length: 4mm
Maximum clock frequency: 80 MHz
Humidity sensitivity: Yes
Installation style: SMD/SMT
Number of input/output terminals: 20 I/O
Number of timers: 3 x 16 bits, 1 x 32 bits
Working power supply voltage: 3V
Operating temperature range: -40 ° C to + 125 ° C
Product type: RF System on a Chip-SoC
Program memory type: Flash
Width: 4mm
Application field
The EFR32BG21B010F512IM32-D has been optimized for BLE and Bluetooth mesh network applications powered by lines, including connected lighting, smart sockets, gateways and voice assistants.
Model
Brand
Package
Quantity
Describe
SILICON
QFN-32
2000
Low power SoC Blue Gecko, QFN32, 2.4G, 20dB, Bluetooth 5.1, 512kB, 64kB(RAM), 20 GPIO
SILICON
QFN-32
2000
Low-power SoC Blue Gecko, QFN32, 2.4G, 20dB, Bluetooth 5.1, 1024kB, 96kB(RAM), 20 GPIO
SILICON
QFN-32
1500
Low-power SoC Blue Gecko, QFN32, 2.4G, 20dB, Bluetooth 5.1, 768kB, 64kB(RAM), 20 GPIO
SILICON
QFN-32
1000
Low-power SoC Blue Gecko, QFN32, 2.4G, 10dB, Bluetooth 5.1, 768kB, 64kB(RAM), 20 GPIO
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI，ST，ADI，NXP，LATTICE，CYPRESS，INFINEON，XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
Silicon Labs was founded in Austin, Texas in 1996 by Nav Sooch, Dave Welland and Jeff Scott to develop world-class mixed-signal devices. Silicon Corporation has become a publicly traded multinational corporation with operations, sales and design activ…

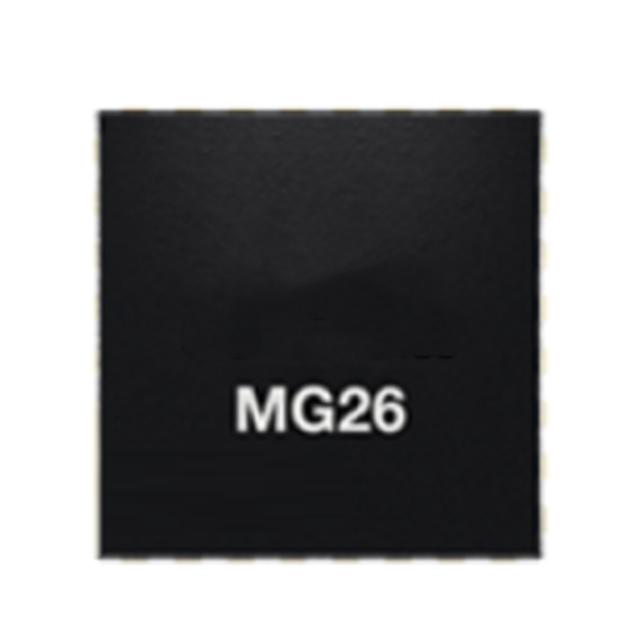

EFR32MG26B511F3200IM68-B
