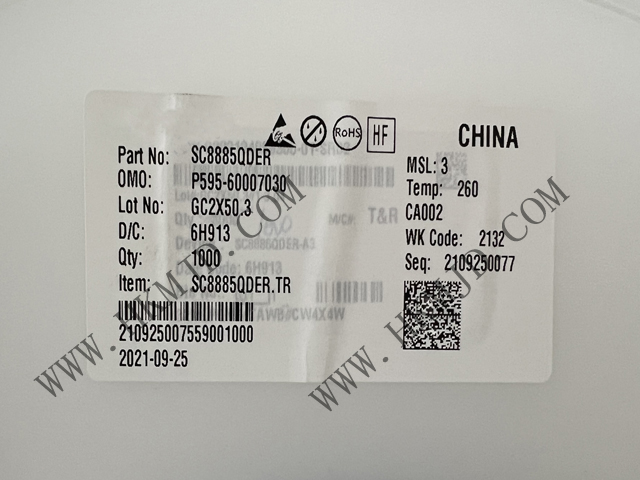

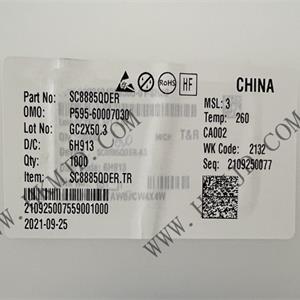

SC8885QDER: Bidirectional Buck-Boost Charger, QFN-32

Model: SC8885QDER

Package: QFN-32

Type: Synchronous Buck-Boost Charger

Product Details:

The SC8885QDER is a synchronous buck-boost charger supporting buck mode, boost mode, and buck-boost mode during forward charging or reverse discharge operation. It charges 1 to 4 cells within a wide input range of 3.5V to 28V, supporting pre-charge, constant current charging, and constant voltage charging. Battery discharge mode provides a wide output range from 3V to 24V with 8mV resolution.

SC8885QDER Product Features:

Wide input range: 3.5V to 28V, sustained up to 30V

High-efficiency buck-boost conversion

Buck-boost battery charger for 1 to 4 cells

Charge management including pre-charge, fast charge, constant voltage charge, auto-wake

Reverse discharge mode with output voltage range: 3V to 24V, 8mV resolution, compliant with USB PD 3.0 standard

NVDC PowerPath management and dynamic power management

SMBus interface

Input current limit set via external resistor and internal register

Switching frequency: 800kHz / 1.2MHz

Integrated PSYS/IADPT/IBAT pins for power and current monitoring, compliant with Intel IMVP8/9 standard

Integrated processor thermal indication (/PROCHOT) pin

Pass-through mode (PTM)

Integrated VMIN active protection (VAP) to supplement system peak power during battery-only operation

Two-stage input current limiting for CPU peak power

Input current optimiser (ICO) algorithm for maximising adapter power capacity

Learning mode and shipping mode for system applications

Integrated 10-bit high-precision ADC
