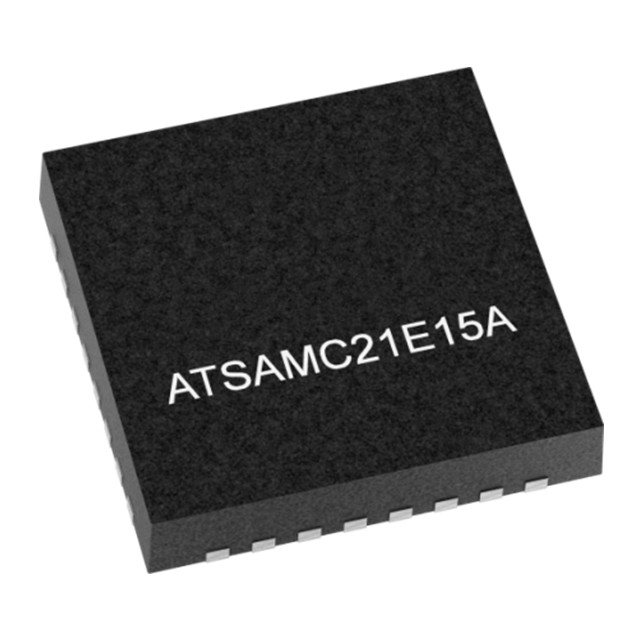

The ATSAMC21E15A-MN device is a SAMC series 5V Cortex-M0+ microcontroller launched by Microchip, specifically designed for industrial and commercial applications, and supports advanced functions such as CAN-FD and PTC (touch Control). The following are its core parameters:

Core processor: ARM® Cortex®-M0+

Kernel specification: 32-bit

Speed: 48MHz

Connection capabilities: CANbus, I2C, LINbus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, DMA, POR, WDT

I/O count: 26

Program storage capacity: 32KB (32K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 4K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 5.5V

Data converter: A/D 10x12b, 1x16b; D/A 1x10b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Device packaging: 32-VQFN (5x5)

ATSAMC21E15A-MN Communication and peripherals

Communication interface ‌ : SERCOM module (supporting USART, I2C, SPI, etc.), CAN-fd (each device contains two CAN interfaces). ‌

Analog function ‌ : 10-bit DAC, 16-bit Sigma-Delta ADC (resolution expandable to 13-16 bits).

Application scenarios

The ATSAMC21E15A-MN microcontroller is suitable for industrial control in noisy environments, automotive electronics and other fields, supporting high-precision analog signal processing and real-time communication requirements.
