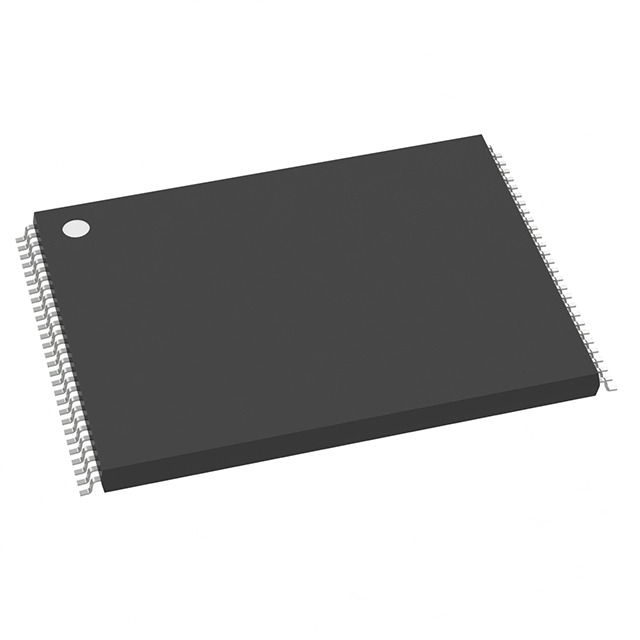

S29GL064S80TFIV63 is 3.0-V single-power flash memory manufactured using 65-nm MIRRORBIT™ technology. The S29GL064S80TFIV63 is a 64-Mb device organized as 4,194,304 words or 8,388,608 bytes. Depending on the model number, the devices have 16-bit wide data bus only, or a 16-bit wide data bus that can also function as an 8-bit wide data bus by using the BYTE# input. The devices can be programmed either in the host system or in standard EPROM programmers.

Features Of S29GL064S80TFIV63

CMOS 3.0 V core with versatile I/O

Single power supply operation

Manufactured on 65-nm MIRRORBIT™ process technology

Secure silicon region

Programmed and locked at the factory or by the customer

Flexible sector architecture

64 Mb (uniform sector models): One hundred twenty-eight 32-Kword (64 KB) sectors

64 Mb (boot sector models): One hundred twenty-seven 32-Kword (64-KB) sectors + eight-4 Kword (8-KB) boot sectors

Automatic error checking and correction (ECC) - internal hardware ECC with single bit error correction

Enhanced versatile I/O control

Compatibility with JEDEC standards

Provides pinout and software compatibility for single-power supply flash, and superior inadvertent write protection

100,000 erase cycles per sector minimum

20-year data retention typical

Performance characteristics

High performance

70 ns access time

8-word / 16-byte page read buffer

15 ns page read time

128-word / 256-byte write buffer which reduces overall programming time for multiple-word updates

Low-power consumption

25 mA typical initial read current at 5 MHz

7.5 mA typical page read current at 33 MHz

50 mA typical erase / program current

40 µA typical standby mode current
