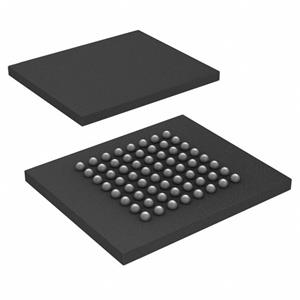

S29GL128S11DHBV20 is MIRRORBIT™ Eclipse flash products fabricated on 65-nm process technology.These devices offer a fast page access time as fast as 15 ns with a corresponding random access time as fast as 90 ns. They feature a Write Buffer that allows a maximum of 256 words/512 bytes to be programmed in one operation, resulting in faster effective programming time than standard programming algorithms. This makes these devices ideal for today’s embedded applications that require higher density, better performance and lower power consumption.

Features Of S29GL128S11DHBV20

• CMOS 3.0 V core with versatile I/O

• 65 nm MIRRORBIT™ Eclipse technology

• Single supply (VCC) for read / program / erase (2.7 V to 3.6 V)

• Versatile I/O feature

- Wide I/O voltage range (VIO): 1.65 V to VCC

• ×16 data bus

• Asynchronous 32-byte page read

• 512-byte programming buffer

- Programming in page multiples, up to a maximum of 512 bytes

• Single word and multiple program on same word options

• Automatic error checking and correction (ECC) – internal hardware ECC with single bit error correction

• Sector erase

- Uniform 128-kbyte sectors

• Suspend and resume commands for program and erase operations

• Status register, data polling, and ready/busy pin methods to determine device status

• Advanced sector protection (ASP)

- Volatile and non-volatile protection methods for each sector

• Separate 1024-byte one time program (OTP) array with two lockable regions

• Common flash interface (CFI) parameter table
