Service Telephone:86-755-83294757
Trade Name:DF80R07W1H5FPB11
Data Manual:DF80R07W1H5FPB11.pdf
Brand:INFINEON
Particular Year:23+
Package:MODULE
Delivery Date:New original
Stock: 1000pcs

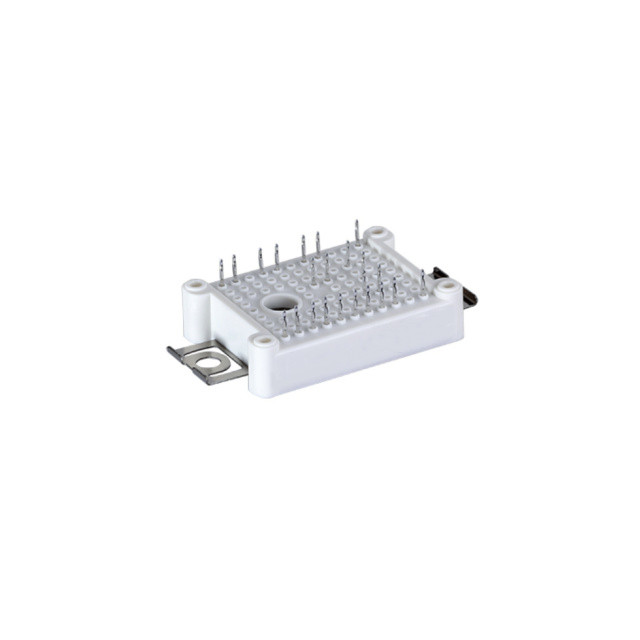

The DF80R07W1H5FPB11 650V EasyPACK™ IGBT module is a high-speed device designed for ultimate efficiency and is suitable for applications with switching rates greater than 30kHz. The H5 (High Speed 5) IGBT uses TRENCHSTOP™ 5 technology with integrated RAPID 1 fast flexible reverse parallel diode. Typical applications include UPS, welding converters, solar cell bank inverters, and medium and high frequency switching converters.
Product Specifications:
IGBT type: trench type field cut-off
Configuration: Two independent
Voltage-emitter breakdown (Max) : 650 V
Current - Collector (Ic) (Max) : 40 A
Power - Maximum: 20 mW
Vce(on) (Max.) for different Vge and Ic: 1.72V@15V, 20A
Current-collector cutoff (Max.) : 12 µA
Input capacitance (Cies) for different Vce: 2 nF @ 25 V
Input: Standard
NTC thermistor: Yes
Operating temperature: -40°C ~ 150°C (TJ)
Installation type: Base installation
Package/shell: Module
Supplier device package: AG-EASY1B-2
Basic product number: DF80R07
Model
Brand
Package
Quantity
Describe
INFINEON
MODULE
2000
IGBT Module Trench Field Stop Triple Inverter 950 V 310 A 20 mW Base Mount
INFINEON
Module
2000
IGBT Module Trench Field Cutoff 2 Standalone 1700 V 900 A 20 mW Chassis Mount
INFINEON
Module
2000
IGBT Module Trench Field Stop 2 Independent 1200 V 600 A 20 mW Chassis Mount AG-ECONOD
VISHAY
SOT-227
1000
"Low-side chopper" IGBT module SOT-227 (grooved field Cut-off IGBT), 47 A
