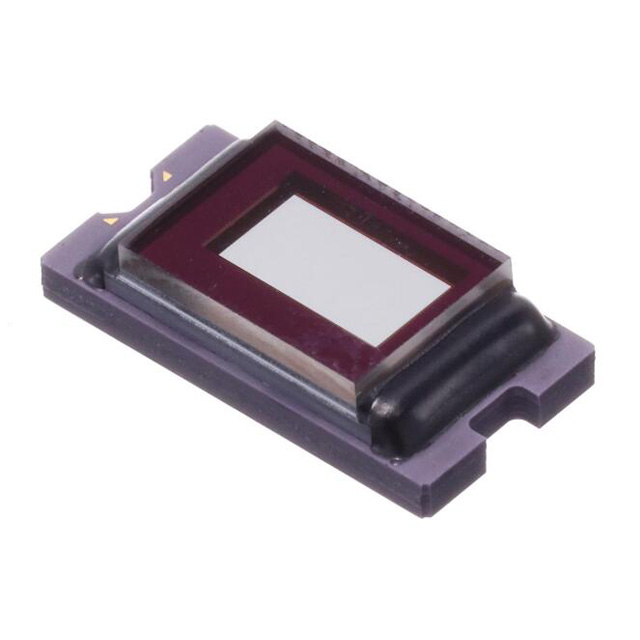

DLP3021FFQRQ1: 0.3-inch, DLP® automotive-grade digital micromirror device (DMD), CLGA-54

Model: DLP3021FFQRQ1

Package: CLGA-54

Type: Digital Micromirror Device (DMD)

Overview:

The DLP3021FFQRQ1 automotive DMD is primarily targeted for automotive exterior lighting control and display applications. Due to its compact size and low power consumption, projectors utilising the DLP3021-Q1 chipset can support numerous projection applications. This chipset can be paired with LEDs or lasers to generate highly saturated colours with over 125% NTSC colour gamut, and is compatible with RGB or white light sources.

DLP3021FFQRQ1 Specifications:

Type: Digital Micromirror Device (DMD)

Display Type: 0.3 WVGA

Minimum Operating Temperature: -40°C

Maximum Operating Temperature: +105°C

Mounting Style: SMD/SMT

Package/Case: CLGA-64

Operating Frequency: 80 MHz

Operating Supply Current: 59.9 mA

Pd-Power Dissipation: 254.77 mW

DLP3021FFQRQ1 Product Features:

Compliant with automotive application standards:

- DMD array operating temperature range: -40°C to 105°C

0.3-inch diagonal micromirror array

- 7.6µm micromirror pitch

- ±12° micromirror tilt angle (relative to plane)

- Side illumination for reduced system footprint

WVGA (864 × 480) input resolution

Polarisation-independent spatial light modulator

Compatible with LED or laser light sources

Low power consumption: 255mW (maximum)

Operating temperature range: –40°C to 105°C

Hermetically sealed package

JTAG boundary scan for in-system verification

Compatible with DLPC120-Q1 automotive DMD controller

80MHz DDR DMD interface
