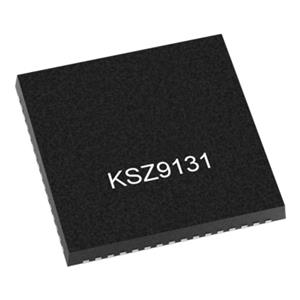

The KSZ9131MNXI Gigabit Ethernet transceiver is an integrated three-speed (10Base-T/100Base-TX/1000Base-T) physical layer transceiver, used for transmitting and receiving data over standard CAT-5, CAT-5e and CAT6 unshielded twisted pair (UTP) cables.

Detailed parameters

Type: Transceiver

Protocol: Gigabit Ethernet

Number of drivers/receivers: 8/8

Duplex: Full, half

Receiver lag: 500 mV

Data rates: 10Mbps, 100Mbps, 1Gbps

Voltage - Power supply: 1.71V - 1.89V, 2.375V - 2.75V, 3.135V - 3.63V

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device package: 64-QFN (8x8)

The KSZ9131MNXI transceiver is equipped with a simplified gigabit media independent interface RGMII. The KSZ9131MNXI adopts the industry standard GMII/MII (Gigabit Media Independent Interface/Media Independent Interface), which is used to connect the GMII/MII MAC in the Gigabit Ethernet processor and the switch, and transmits data at a speed of 1000Mbps or 10/100Mbps.

Typical applications

The KSZ9131MNXI transceiver is suitable for industrial equipment, data centers, automotive electronics and other fields that require high-speed network transmission. It supports local area network wake-up (WOL) and giant frame transmission (up to 16KB).
