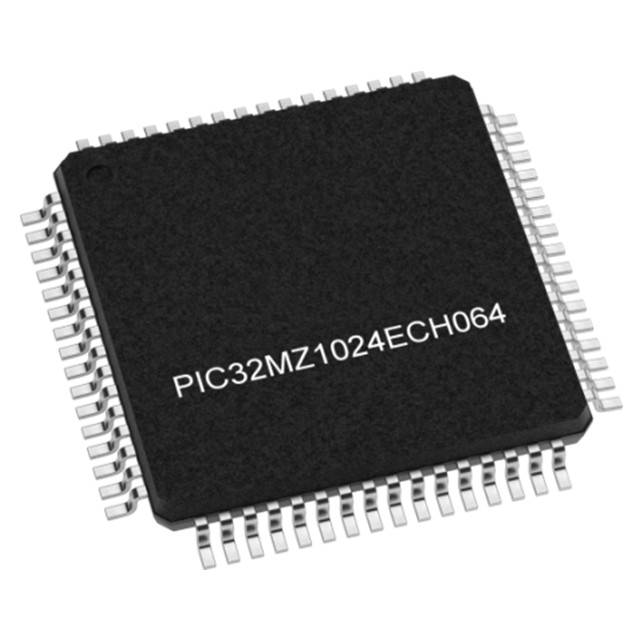

The PIC32MZ1024ECH064T-I/PT is a 32-bit embedded connectivity microcontroller (MCU) specifically designed for high-performance connectivity and Internet of Things applications. This MCU adopts the MIPS microAptiv core, with a main frequency up to 200MHz. It is equipped with 1MB of real-time update flash memory and 512KB of SRAM. It supports high-speed communication interfaces such as USB, Ethernet, and CAN, and integrates audio/graphics processing, analog functions, and security features.

Youdaoplaceholder0 PIC32MZ1024ECH064T-I/PT main specifications include:

Core processor: MIPS32® microAptiv™

Kernel specification: 32-bit

Speed: 200MHz

Connection capabilities: CANbus, Ethernet, I2C, SPI, SQI, UART/USART, USB OTG

Peripherals: power-off detection/reset, DMA, I2S, POR, PWM, WDT

I/O count: 53

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 512K x 8

Voltage - Power supply (Vcc/Vdd) : 2.3V to 3.6V

Data converter: A/D 24x10b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device package: 64-TQFP (10x10)

Typical applications

The PIC32MZ1024ECH064T-I/PT microcontroller is highly suitable for applications with high reliability requirements such as industrial control and automotive electronics, for instance, in AEC-Q100 certified products.
