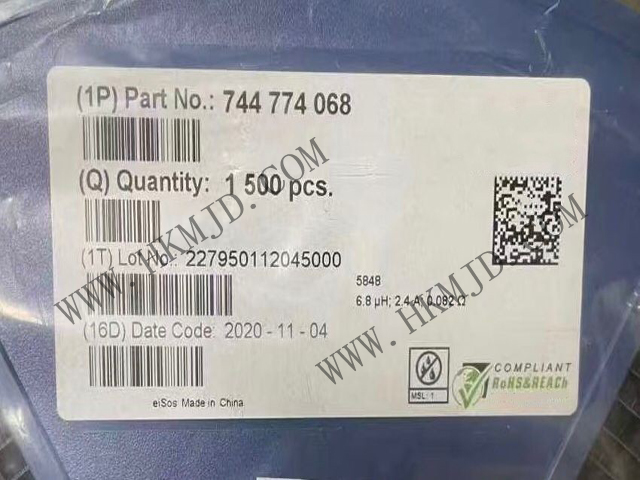

744774068 is a surface-mount power inductor manufactured by Würth Elektronik, belonging to the WE-PD2 series. This inductor features an unshielded design with an inductance value of 6.8 µH and a rated current of 2.4 A. It is suitable for medium to high-power applications such as mobile phone chargers, USB PD power adapters, car chargers, and LED driver power supplies.

744774068 Technical Specifications

Inductance: 6.8 µH

Accuracy: ±20%

Rated Current: 2.4 A

Saturation Current: 5 A

Direct Current Resistance (DCR): 82 mΩ

Self-resonant Frequency: 28 MHz

Operating Temperature Range: -40°C to +125°C

Package Dimensions: 5.80 mm x 5.20 mm

Height: 4.85 mm

Mounting Type: Surface Mount (SMT)

Material: Ferrite

Test Frequency: 10 kHz

Shielding: Unshielded
