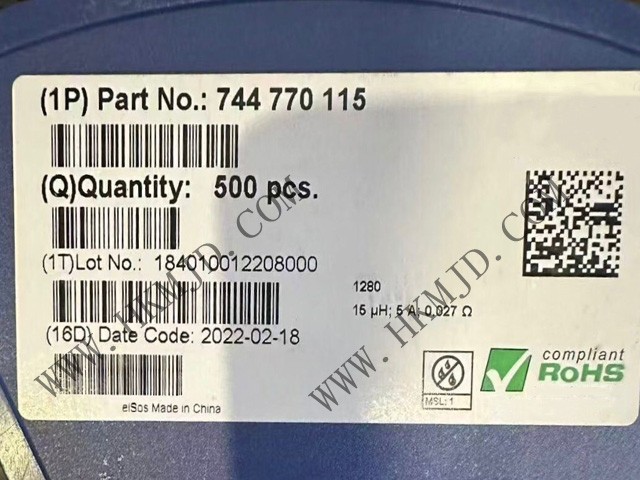

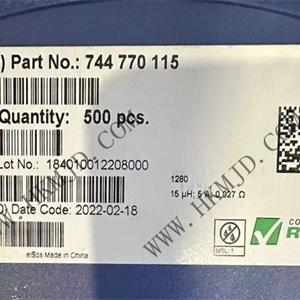

744770115 is a shielded surface-mount power inductor manufactured by Würth Elektronik, belonging to the WE-PD series.

WE-PD Series Features

Compliant with AEC-Q200 standards

Ultra-low RDC and RAC

Highest saturation current based on ferrite

Suitable for switching frequencies up to 10MHz

Temperature-dependent parameters available on RedExpert

Operating temperature range: -40°C to +125°C / +150°C

744770115 Product Attributes

Product Type: Power Inductor (SMD Type)

Type: Power Choke Coil

Package/Enclosure: 12 mm x 12 mm

Shielding: Shielded

Inductance: 15 uH

Tolerance:    20%

Maximum DC Current:    5 A

Maximum DC Resistance:    27 mOhms

Saturation Current:    6 A

Minimum Operating Temperature:    -40°C

Maximum Operating Temperature:    +125°C

Self-Resonant Frequency:    14.5 MHz

Terminal:    Standard

Length:    12 mm

Width:    12 mm

Height:    8 mm

Core material:    Ferrite

Qualification:    AEC-Q200

Series:    WE-PD

Application areas

Switching regulators with low operating voltage or high efficiency (>85%)

Computers, laptops

Mobile phones, pagers

DC/DC converters

Graphics cards

High vibration and shock environments
