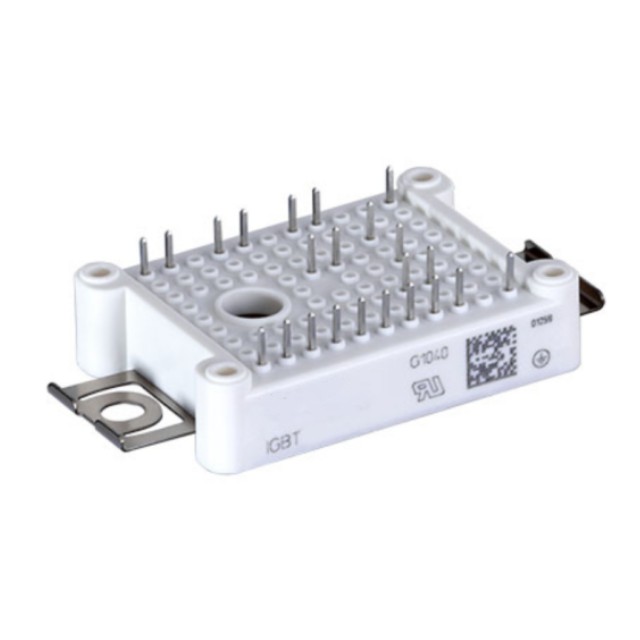

FS30R06W1E3B11 EasyPACK™ 1B 600V 30A Six-Cell IGBT Module with 3rd Generation Trench Gate/Field Terminated IGBTs, 3rd Generation Emitter Control Diodes, NTCs and PressFIT Crimp Technology.

Product Attributes:

Series: EasyPACK™

IGBT Type: Trench Field Termination

Configuration: Three Phase Inverter

Voltage - Collector Breakdown (max): 600 V

Current - Collector (Ic) (max): 45 A

Power - Max: 150 W

Vce(on) (max) at different Vge, Ic: 2V @ 15V, 30A

Current - Collector Cutoff (Max): 1 mA

Input capacitance (Cies) at different Vce: 1.65 nF @ 25 V

Input: Standard

NTC Thermistor: Yes

Operating Temperature: -40°C ~ 150°C

Mounting Type: Chassis Mount

Package/Housing: Module

Supplier Device Package: Module

Base Product Number: FS30R06

Typical Applications

Air Conditioning

Motor Drivers

Servo Drives

UPS systems
