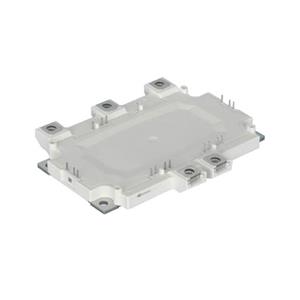

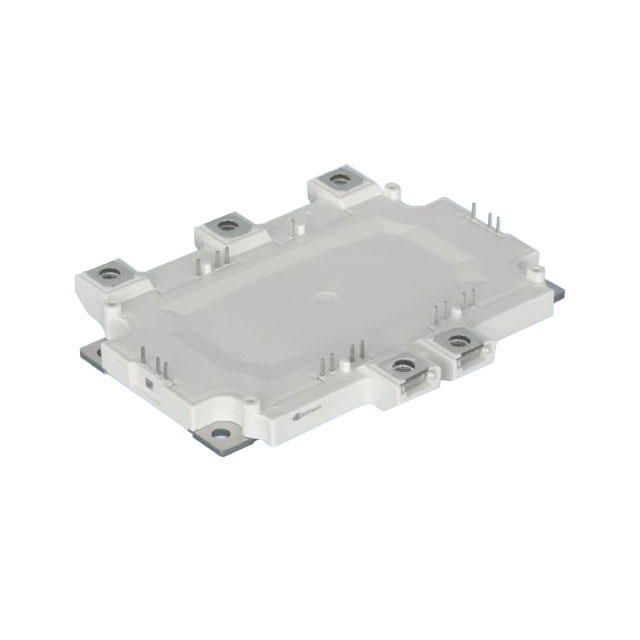

The FS400R07A1E3S7 is designed for automotive power module applications in the power range up to 20-30 kW. The module has a junction operating temperature of 150°C. The module uses trench-field cutoff IGBTs3 in a three-phase, six-bank configuration with matched emitter-controlled diodes. The FS400R07A1E3S7 is based on Infineon's long experience in the development of IGBT power modules as well as in-depth research into novel material combinations and assemblies.HybridPACKTM 1 is suitable for air or liquid cooling. Copper substrates with high-performance ceramic substrates and Infineon's high-performance ceramic substrates and Infineon's enhanced wire bonding process provide unrivalled thermal cycling and power cycling capabilities and the highest reliability. Generator applications offer unrivalled thermal cycling and power cycling capabilities and highest reliability. Compact designDriver-level printed circuit boards are easily soldered to the top of the module. Screw terminals are used for all power connections.

Product Attributes

IGBT Type: Trench Field Cutoff

Configuration: Full Bridge Inverter

Voltage - Collector Breakdown (max): 705 V

Current - Collector (Ic) (max): 500 A

Power - Max: 1250 W

Vce(on) at varying Vge, Ic (max): 1.7V @ 15V, 400A

Current - Collector Cutoff (Max): 100 µA

Input capacitance (Cies) at different Vce: 28 nF @ 25 V

Input: 3-phase bridge rectifier

NTC Thermistor: Yes

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Chassis Mount

Package/Housing: Module

Supplier Device Package: AG-HYBRID1-1

Applications

• Hybrid Electric Vehicles (H)EV

• Motor Driver
