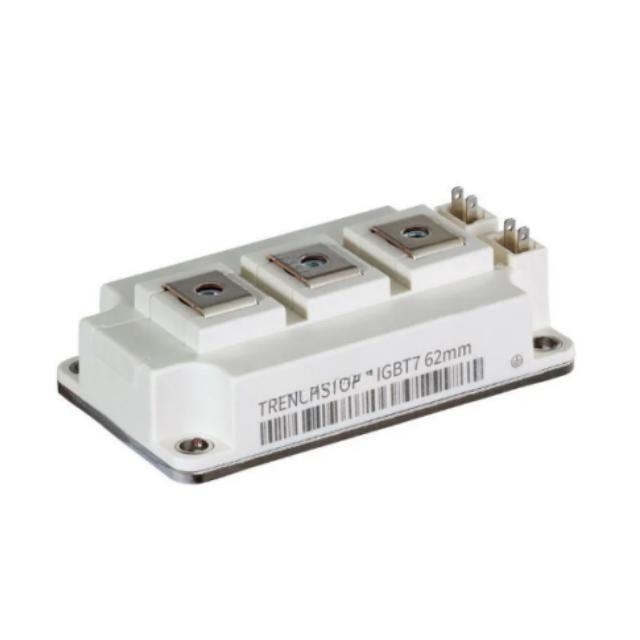

The FF600R12KE7E is equipped with a TRENCHSTOP™ IGBT7 and emitter controlled diode.The FF600R12KE7E features the highest power density, best-in-class VCEsat, an isolated backplane, a standard enclosure, is RoHS compliant, and UL/CSA certified in accordance with UL1557 E83336.FF600R12KE7E Available packages with higher current capability for increased inverter output power with no change in frame size, especially for NPC2 topology in three-level configurations, highest power density, avoids parallel connection of IGBT modules, reduces system cost by simplifying the inverter system, flexible, can be used in three-level configurations, highest reliability.

Product Attributes

IGBT type: Trench field cut-off

Configuration: Half Bridge Inverter

Voltage - Collector Breakdown (max): 1200 V

Current - Collector (Ic) (max): 600 A

Vce(on) (max) at different Vge, Ic: 1.75V @ 15V, 600A

Current - Collector Cutoff (max): 100 µA

Input capacitance (Cies) at varying Vce: 92.3 nF @ 25 V

Input: Standard

NTC Thermistor: None

Operating Temperature: -40°C ~ 175°C (TJ)

Mounting Type: Chassis Mount

Package/Housing: Module

Supplier Device Package: AG-62MMHB

Applications

• Servo Drives

• Solar Applications

• UPS Systems

• Motor Drivers

• High Power Converters

• Commercial Agricultural Vehicles

• Three-level applications
