The R5F523E5JDFN is a 32-bit microcontroller (MCU) launched by Renesas, specifically designed for industrial sensor devices. It features a high-precision analog front end (AFE) and powerful digital signal processing capabilities. The RX23E-B MCU has a maximum data rate of 125kSPS, which is 8 times faster than the previous generation RX23E-A. The RMS noise has been reduced to one-third, making it suitable for high-precision measurements of strain, temperature, pressure, etc.

The R5F523E5JDFN has the following key parameters:

Core processor: RXv2

Kernel specification: 32-bit

Speed: 32MHz

Connection capabilities: CANbus, I2C, SCI, SPI, UART/USART

Peripheral devices: DMA, LCD, LVD, POR, PWM, WDT

I/O count: 43

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: 8K x 8

RAM size: 16K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 5.5V

Data converter: A/D 8x12b SAR, 8x24b trigonometric integration; D/A 1x16b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

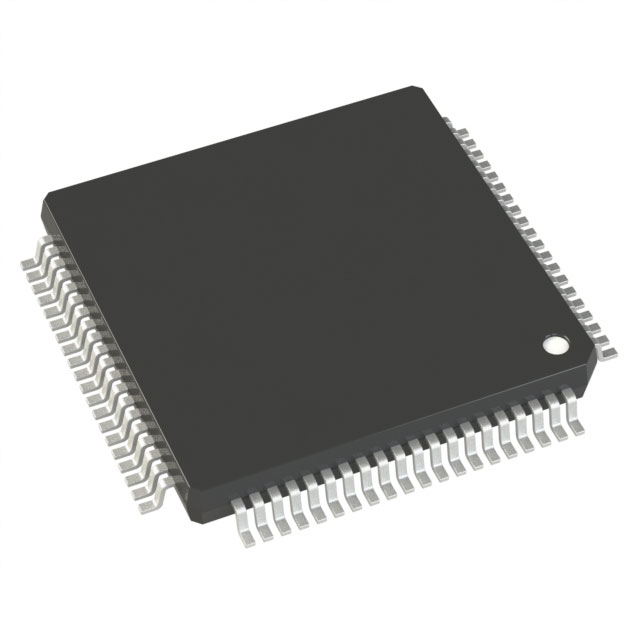

Package: 80-LFQFP (12x12)

Typical applications of the R5F523E5JDFN MCU include:

Industrial automation

Weight scale and strain gauge

Pressure/flow control

PLC analog input module

Laboratory instruments for data acquisition
