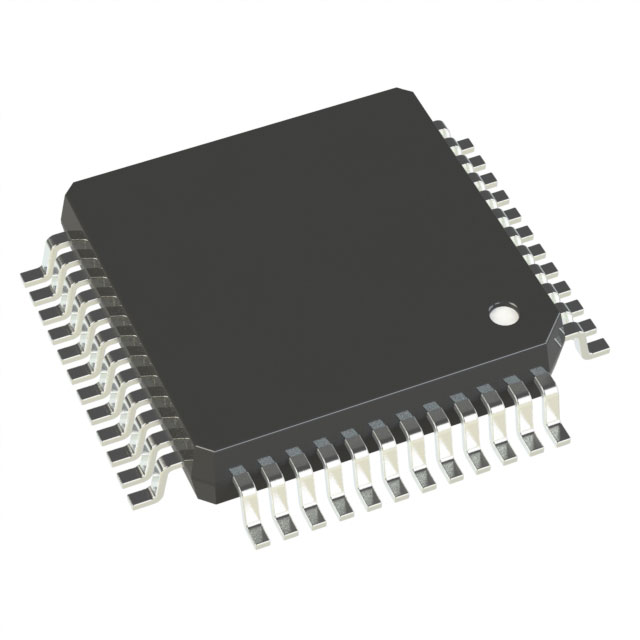

The R5F523E5BDFL is a 32-bit microcontroller that integrates a 24-bit Delta-Sigma analog-to-digital converter with a rate as high as 125kSPS. This product belongs to the RX23E-B series MCU and is an ideal choice for industrial sensor devices. The following are the core parameters of the R5F523E5BDFL chip:

Core processor: RXv2

Kernel specification: 32-bit

Speed: 32MHz

Connection capabilities: CANbus, I2C, SCI, SPI, UART/USART

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O count: 17

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash memory

EEPROM capacity: 8K x 8

RAM size: 16K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 5.5V

Data converter: A/D 8x12b SAR, 6x24b trigonometric integration; D/A 1x16b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Package: 48-LFQFP (7x7)

Renesas' RX23E-B MCU features an enhanced built-in analog front end (AFE) specifically designed for industrial sensor devices. The RX23E-B series features a 24-bit delta-sigma a /D converter, offering enhanced high-speed and noise performance with a maximum data rate of 125kSPS. The noise of RMS has been reduced to approximately one-third of that of RX23E-A, allowing for precise and rapid measurement of strain, temperature, pressure, flow rate, current, voltage, etc. In addition, the RX23E-B integrates a 16-bit D/ a converter and a +/-10V high-voltage analog signal input circuit, minimizing the bill of materials (BOM) and floor space.

Application scenarios

R5F523E5BDFL is widely used in the following scenarios:

Industrial sensor equipment (such as load cells, force sensors, pressure gauges) ‌

Automatic control systems (such as PLC analog input modules, data acquisition systems)
