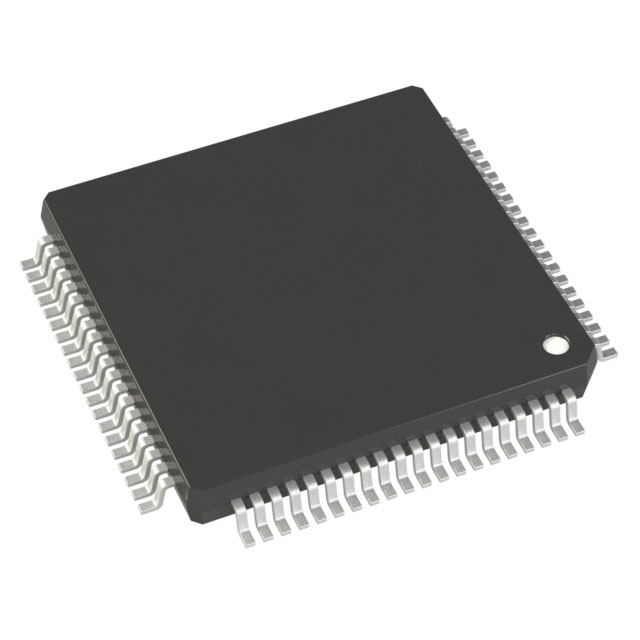

The R5F52607ADFN RX260 microcontroller adopts the RXv3 core, achieving A performance of 355CoreMark at 64MHz (equivalent to 2.5 times that of 100MHz Cortex-M4), with an operating current of 69μA/MHz and a standby current of only 1μA. With the SNOOZE mode, the RX260 series MCU enables peripheral functions to operate in standby mode, thereby significantly reducing power consumption during intermittent operation.

The following are the core parameters of the R5F52607ADFN microcontroller:

Series: RX260

Installation style: SMD/SMT

Packaging/Cabinet: LFQFP-80

Core: RXv3

Program memory size: 384 kB

Data RAM size: 128 kB

Data bus width: 32 bits

ADC resolution: 12 bits

Maximum clock frequency: 64 MHz

Number of input/output terminals: 67 I/O

Power supply voltage - minimum: 1.6V

Power supply voltage - maximum: 5.5V

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Packaging: Tray

Analog power supply voltage: 1.6V to 5.5V

Trademark: Renesas Electronics

Interface types: CAN FD, I2C, RSCI, RSPI, SCI, USB 2.0

Number of ADC channels: 18 channels

Product type: 32-bit Microcontrollers - MCU

Program memory type: ROM

Typical applications

The R5F52607ADFN chip is mainly used in home appliances (such as smart locks and kitchen appliances), building automation, battery-powered equipment (such as mobile thermal printers), and industrial control fields.
