The R5F52606AGNE is an RX260 microcontroller with an outstanding energy efficiency ratio and advanced touch functionality, produced by Renesas. It adopts the RXv3 core and achieves a performance of 355CoreMark at 64MHz (equivalent to 2.5 times that of 100MHz Cortex-M4). The operating current is 69μA/MHz, and the standby current is only 1μA. Supports SNOOZE mode, allowing peripherals to operate at low power consumption during standby.

The key features of the R5F52606AGNE MCU include:

64MHz RXv3 core (355CoreMark)

Low power consumption (operating: 69μA/MHz, standby: 1μA)

Maximum 512KB code flash memory and 128KB SRAM

8KB data flash memory, which can provide data storage functions similar to EEPROM

Operating voltage range: 1.6V to 5.5V

Operating temperature range: -40°C to 105°C

High-speed on-chip oscillator, accuracy +/- 1.0%

Capacitive touch sensing unit (CTSU2SL

Safety protection (flash memory protection

UART, SPI, I2C

16-bit / 32-bit universal PWM timer, 16-bit low-power timer, 16-bit comparation-matching timer, 8-bit timer, RTC

12-bit A/D converter, 8-bit D/A converter, comparator, temperature sensor

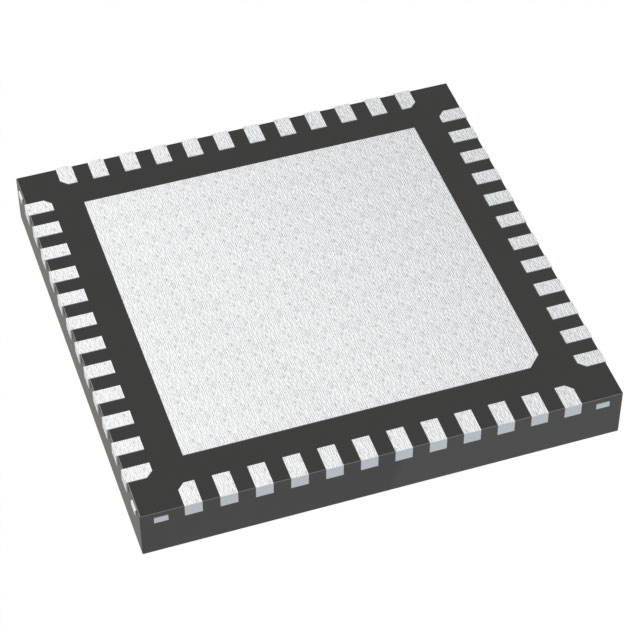

48-HWQFN pin package

The target applications of the R5F52606AGNE MCU include:

Consumer electronic products

Building automation

Industrial automation

Medical care and health preservation
