R5F52606ADFL is A 32-bit microcontroller launched by Renesas, based on the RXv3 core. It can achieve 355CoreMark performance at A main frequency of 64MHz and has excellent energy efficiency (operating current 69μA/MHz, standby current 1μA). The main parameters of this device include:

Series: RX260

Installation style: SMD/SMT

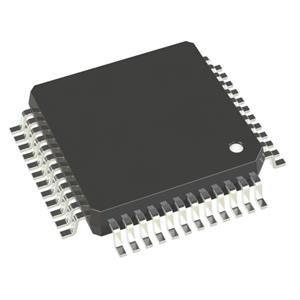

Packaging/Cabinet: LFQFP-48

Core: RXv3

Program memory size: 256 kB

Data RAM size: 128 kB

Data bus width: 32 bits

ADC resolution: 12 bits

Maximum clock frequency: 64 MHz

Number of input/output terminals: 37 I/O

Power supply voltage - minimum: 1.6V

Power supply voltage - maximum: 5.5V

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Packaging: Reel

Analog power supply voltage: 1.6V to 5.5V

Trademark: Renesas Electronics

Interface types: CAN FD, I2C, RSCI, RSPI, SCI, USB 2.0

Number of ADC channels: 11 channels

Product type: 32-bit Microcontrollers - MCU

Program memory type: ROM

In addition, the R5F52606ADFL also features area protection, allowing users to set an unoverwritable area in the code flash memory. This function is highly suitable for storing secure boot programs.

The application scenarios of the R5F52606ADFL microcontroller include

Consumer electronic products

Building automation

Industrial automation

Medical care and health preservation
