The R5F52616BDFL 32-bit MCU is equipped with Renesas' self-developed RXv3 CPU core, which has a performance of up to 355 CoreMark, a 2.5-times improvement over microcontrollers of the same level, thus demonstrating significant advantages when handling complex computing tasks.

Thanks to the perfect combination of outstanding performance and functionality, the R5F52616BDFL microcontroller is suitable for applications such as household appliances, building and factory automation, as well as numerous application scenarios including smart locks, electric bicycles and mobile thermal printers.

Technical specifications

Product: R5F52616BDFL

Series: RX261

Installation style: SMD/SMT

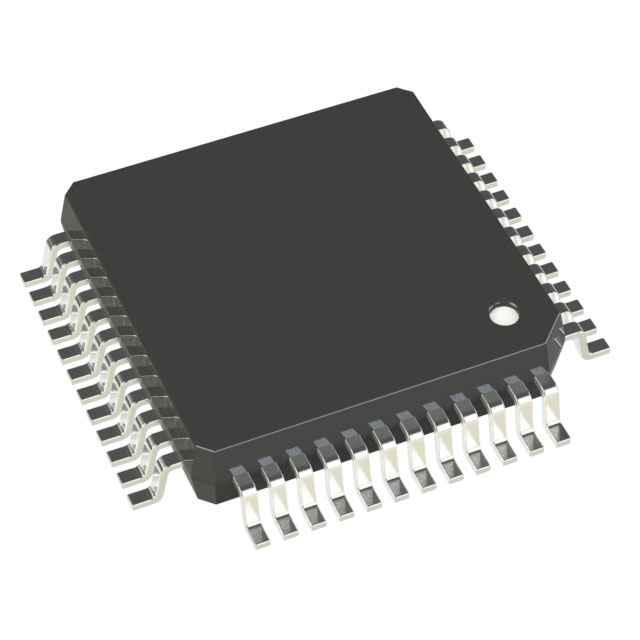

Packaging/Cabinet: LFQFP-48

Core: RXv3

Program memory size: 256 kB

Data RAM size: 128 kB

Data bus width: 32 bits

ADC resolution: 12 bits

Maximum clock frequency: 64 MHz

Number of input/output terminals: 37 I/O

Power supply voltage - minimum: 1.6V

Power supply voltage - maximum: 5.5V

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Packaging: Tray

Analog power supply voltage: 1.6V to 5.5V

Interface types: CAN FD, I2C, RSCI, RSPI, SCI, USB 2.0

Number of ADC channels: 11 channels

Product type: 32-bit Microcontrollers - MCU

Program memory type: ROM
