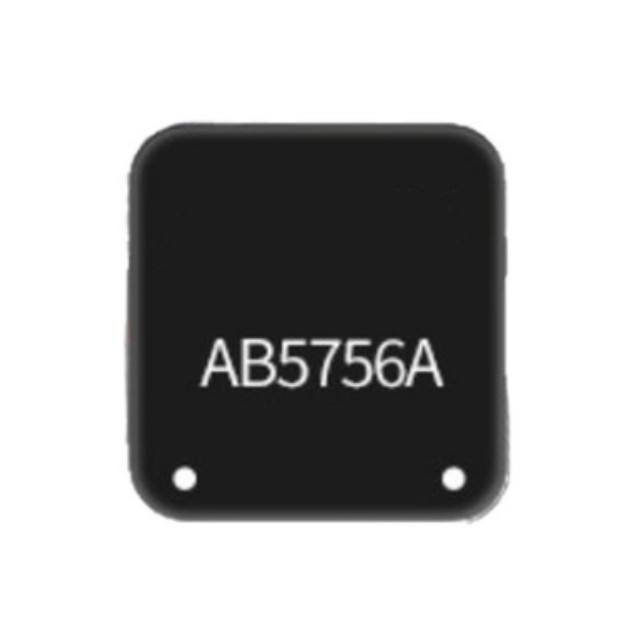

AB5756A is a high-performance Bluetooth audio chip specifically designed for TWS earbuds, supporting the Bluetooth 6.0 protocol, featuring low power consumption, high audio quality, and a wealth of functional features.

Features (AB5756A)

High-performance processor: Built-in 32-bit RISC-V processor with a clock speed of 120MHz, supporting DSP instruction extensions, enabling efficient processing of audio algorithms.

Low-power design: Utilises advanced manufacturing processes to optimise power management, extending the battery life of TWS earbuds.

Rich storage resources: Features 2Mbit of built-in flash memory for storing programs and 113KB of internal RAM to meet the needs of various audio applications.

Multiple audio interfaces: Integrated 16-bit mono DAC and ADC, supporting flexible audio equalisation adjustments, and compatible with various sampling rates, including 8, 11.025, 12, 16, 22.05, 32, 44.1, and 48kHz. Built-in high-performance mono audio ADC (95dB SNR) and DAC (107dB SNR), supporting single-ended, differential, and VCMBUF modes.

Bluetooth 6.0 technology: Compliant with the Bluetooth 6.0 protocol (QDID: Q342943), with excellent RF performance, a maximum TX output power of +10dBm, and RX sensitivity of -91dBm at the base rate and -94dBm in EDR mode, ensuring stable and reliable wireless connectivity.

Flexible GPIO configuration: Features flexible GPIO pins with programmable pull-up and pull-down resistors, supporting GPIO wake-up or interrupt functionality.

Package type: Uses a QFN20 3×3 package, compact in size, making it easy to integrate into TWS earbuds.

Operating temperature: Operating temperature range is -40°C to +85°C, and storage temperature range is -65°C to +150°C, suitable for various environmental conditions.

Technical specifications

Model: AB5756A

CPU: 32-bit RISC-V processor with a clock speed of 120MHz.

Storage: 2Mbit built-in flash memory and 113KB internal RAM.

GPIO: Flexible GPIO pins with programmable pull-up and pull-down resistors, supporting GPIO wake-up or interrupt.

Bluetooth: Compliant with Bluetooth 6.0 protocol (QDID: Q342943), TX maximum output power +10dBm, RX sensitivity -91dBm (baseline rate), -94dBm (EDR)

Audio: 16-bit mono DAC and ADC, supporting sampling rates including 8, 11.025, 12, 16, 22.05, 32, 44.1, and 48 kHz; high-performance mono audio ADC (95 dB SNR) and DAC (107 dB SNR), supporting single-ended, differential, and VCMBUF modes.

Package: QFN20 3×3

Operating temperature: -40°C to +85°C

Storage temperature: -65°C to +150°C

Applications

The AB5756A is primarily used in TWS Bluetooth earbuds and can also be applied to OWS Bluetooth earbuds, headphones, Bluetooth speakers, music glasses, and other audio-related products.
