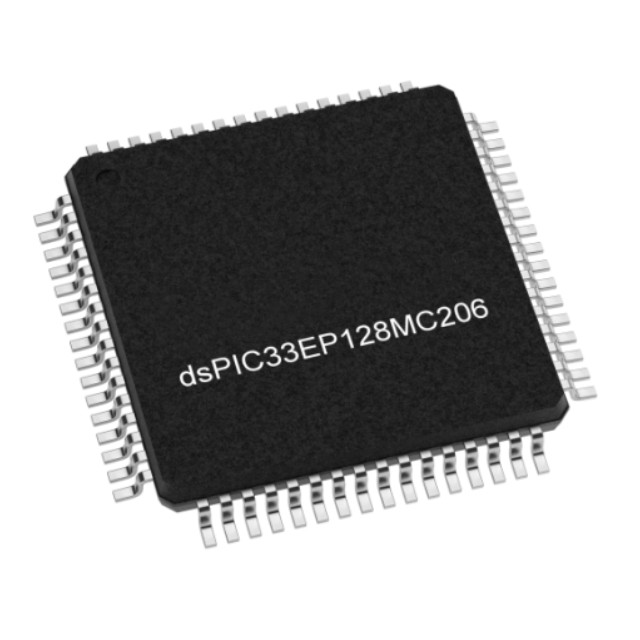

DSPIC33EP128MC206-H/PT is digital signal controllers (DSCs) features a 70 MIPS dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation, have a great range and extended life.

Features Of DSPIC33EP128MC206-H/PT

Operating Conditions

3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS

3.0V to 3.6V, -40ºC to +150ºC, DC to 60 MIPS

dsPIC33E DSC Core

Modified Harvard Architecture

C Compiler Optimized Instruction Set

16-bit Wide Data Path

24-bit Wide Instructions

16x16 Integer Multiply Operations

32/16 and 16/16 Integer Divide Operations

Two 40-bit Accumulators with Rounding and Saturation Options

Single-Cycle Multiply and Accumulate

Single-Cycle shifts for up to 40-bit Data

16x16 Fractional Multiply/Divide Operations

Programmable Cyclic Redundancy Check (CRC)

Advanced Analog Features

ADC: Configurable as 10-bit, 1.1 Msps with four S&H or12-bit, 500 ksps with one S&H

Up to three Op amp/Comparators

Op Amp direct connection to the ADC module

Additional dedicated comparator

Programmable references with 32 voltage points for comparators

Charge Time Measurement Unit (CTMU)

Timers/Output Compare/Input Capture

12 general purpose timers

Four OC modules configurable as timers/counters

Five 16-bit and up to two 32-bit timers/counters

PTG module with two configurable timers/counters

Four IC modules

Peripheral Trigger Generator (PTG) for scheduling complex sequences

Communication Interfaces

Two UART modules (15 Mbps)

Two 4-wire SPI modules (15 Mbps)

CAN™ module (1 Mbaud) CAN 2.0B support

Two I2C™ modules (up to 1 Mbaud) with SMBus support

PPS to allow function remap

Direct Memory Access (DMA)

4-channel DMA with user-selectable priority arbitration

UART, SPI, ADC, ECAN, IC, OC, and Timers

Applications Of DSPIC33EP128MC206-H/PT

Control brushless DC

Permanent magnet synchronous

AC induction and stepper motors
