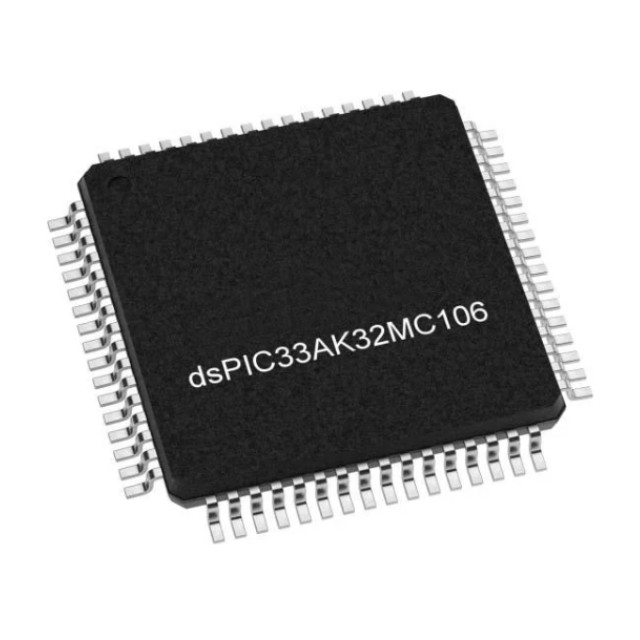

DSPIC33AK32MC106-I/PT is 200MHz, 32-bit Digital Signal Controller (DSC) with 32/64bit Floating-Point Unit (FPU) and up to 128KB Flash Program Memory and 16KB SRAM Data Memory. High-speed 40MSPS 12-bit ADCs, high-bandwidth 100MHz op amps with low input voltage offset, fast 5nS comparators and high-speed PWM outputs designed to optimize real-time control applications. Functional Safety Ready with AEC-Q100 qualification support for automotive applications.

Feature Of DSPIC33AK32MC106-I/PT

Operating Conditions

3.0V to 3.6V: -40°C to +85°C, DC to 200 MHz

3.0V to 3.6V: -40°C to +150°C, DC to 200 MHz

3.0V to 3.6V: -40°C to +125°C, DC to 200 MHz

High-Performance dsPIC33A Digital Signal Controller (DSC)

32-bit Rich Instruction Set for Optimized Speed and Program Code Size:

Non-paged linear Data/Flash 24-bit addressing space

16-bit/32-bit instructions for optimized code size and performance

32-bit Wide Data Paths

Single and Double Precision Floating-Point Unit (FPU) Coprocessor

Edge or Level Change Notification Interrupt on I/O pins

Peripheral Pin Select (PPS) Remappable Pins to Reduce Board Layout Complexity

Multiple Interrupt Vectors with Individual Programmable Priority

Five External Interrupt Pins

Selectable Oscillator Options Including:

8 MHz, 1% at 0ºC-85ºC Internal Fast RC (FRC) oscillator

8 MHz, 2% Internal Backup Fast RC (BFRC) oscillator with 32 kHz divided output

2 Kbyte Instruction Cache

Sixteen 32-bit Working Registers

Dual 72-bit Accumulators Supporting 32-bit and 16-bit Fixed-Point DSP Operations

Eight Level Deep Working Register Sets

Eight Level Deep Accumulator Register Sets

Eight Level Deep Floating Point Register Sets

Memory Features

Up to 128 Kbytes of Program Flash Memory:

10,000 erase/write cycle endurance

20 years minimum data retention

Self-programmable under software control

Programmable code protection

Flash Error Correcting Code (ECC)

Programmable OTP regions

Entire Flash OTP by ICSP™ write inhibit

64 x128-bit OTP area

High-speed crystal resonator oscillator or external clock

Up to 16 Kbytes of RAM Memory:

6-channel hardware Direct Memory Access (DMA) module

RAM Error Correcting Code (ECC)

RAM Memory Built-In Self-Test (MBIST)

Controller Features

High-Current Sink/Source Capable I/Os

Programmable Weak Pull-Up and Pull-Down Resistors

Programmable Open-Drain Outputs

Two 1.6 GHz PLLs for Peripheral which can be clocked from the FRC or a Crystal Oscillator

Reference Clock Output (REFO)

Low-Power Management Modes (Sleep and Idle)

Power-On Reset and Brown-Out Reset

High-Speed PWM

Four PWM Generators (Four Pairs, Eight Outputs)

Up to 2.5 ns PWM Resolution

Dead Time for Rising and Falling Edges

Dead-Time Compensation Supports Lower Speed Operation

PWM Support for:

BLDC, PMSM, ACIM, SRM and stepper motors

Fault and Current Limit Inputs

Flexible Trigger Configuration for ADC Triggering

Two High-Speed Analog-to-Digital Converters

12-bit Resolution

Up to 40 MSPS Conversion Rate

Up to 22 Analog Input Pins

20 Settings Channels. Each Channel:

Can be assigned to any analog input (I/O pin or internal signal)

Can be set to a different sampling time

Can be configured as single-ended or differential

Conversion result can be formatted as unsigned or signed

Conversion result can be left-aligned (fraction format)

Has a separate 32-bit conversion result register

Supports Four Sampling modes:

Oversampling of multiple samples

Integration of multiple samples

Window (multiple samples accumulated when the gate signal is active)

Single Conversion

All channels have a digital comparator to detect when the conversion result is less than, greater than, in bounds or out of bounds for the configurable thresholds

Last three settings channels have the second result accumulator to implement second order filters

Band Gap Reference and Temperature Sensor Diode Inputs

Other Analog Features

Three 5 nS Analog Comparators with 12-bit PDM DACs:

Input multiplexing

Slope compensation

One DAC output buffer

Eight Constant-Current Sources

Up to 3 Rail-to-Rail 100 MHz Operational Amplifiers with

100 V/μS slew rate

1 mV offset (typical)

User calibration of input offset voltage

Safety Features

Windowed Watchdog Timer (WDT)

Deadman Timer (DMT)

Four I/O Integrity Monitors (IOIM)

Fail-Safe Clock Monitor (FSCM) with Automatic Switchover to Backup Clock Source with:

Programmable over-frequency/under-frequency thresholds

Flash Error Correcting Code (ECC)

RAM Error Correcting Code (ECC)

RAM Memory Built-In Self-Test (MBIST)

32-bit Cyclic Redundancy Check (CRC) Module

Entire Flash OTP by ICSP™ Write Inhibit

Capless Internal Voltage Regulator

Virtual PPS Pins for Redundancy and Monitoring

Temperature Sensor Diode
